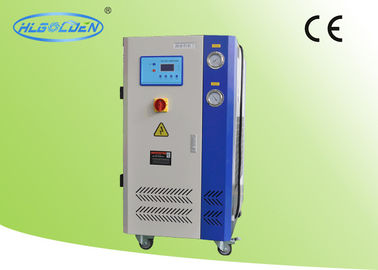

Eco Cooling Small Industrial Water Chiller , Portable Water Chiller Box

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	15~25 days
Payment Terms:	T/T, Western Union, L/C, MoneyGram
Supply Ability:	20 Units per Month

Contact Now

Detailed Product Description

Function:	Cooled Water	Cooling Capacity:	14.9KW
Input Power:	5.55KW	Compressor:	1 Pc
Comp. Current:	10.5A	Power Supply:	380~400V/3PH/50HZ
Circuit Number:	1	Water Tank:	80 L
Pump:	0.75KW	Color:	Blue
Type:	Air Cooled	Protection:	Phase Lack Protection
Noise:	72 Db(A)	Weight:	170KG
High Light:	Water Cooler Chiller , Air Cooled Scroll Chiller

Blue Box Industrial Water Chiller , Air Cooled Portable Water Chiller

Production Description:

Cooling Capacity: 14.9KW ( 12.8×1000 kcal/h );
Refrigerant: R22 / R407C / R134A;
Chilled Water Temperature: From 5℃ to 20℃;
Industry Use: Molding / Plastic / Injection etc.
Designed with imported compressor(Copeland Brand) and multi-refrigeration circuits.
Compressors: 1~3 compressors design to save energy and power.
Open-type stainless steel water tank, easy and fast to clean and maintain.
Well-structured safety protection and trouble indication system.

Product Function:

The water chiller could be used in many places and industries just like Molding / Plastic / Injection equipmentetc industries.
Chilled Water Temperature: From 5℃ to 20℃;.
Brand of Compressor: Standard unit is Copeland, you could choose other brands just like Danfoss, Bitzer, Dakin etc.
Safety protection: Just like showed in the form.

Product Detail:

Model HLLA ～		05SI
Rated Cooling Capacity	×1000 kcal/h	12.8
	KW	14.9
Input Power (KW)		5.55
Comp. Input Power×Qty. (KW)		4.3
Chillded Water Pump Model		HT1.0DK-20
Chilled Water Pump Power (KW)		0.75
Comp. Current (A)		10.5
Power Supply		3φ-380V-50HZ
Safety Protection		Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection,
Number of Refrigeration Circuit		1
Capacity Control (%)		0, 100
Refrigerant		R22
Condenser		Ripple Aluminum Fins around Cooper Pipe
Power lnput of Fan (KW)		0.5
Evaporator		Pipe Coil Type
Water Side Max Pressure (MPa)		-
Dia.of Pipe to Evaporator (inch)		1"
Chilled Water Flow (L/m)		42.7
Evaporator Water Pressure drop (kPa)		-
Running Noise dB(A)		72
Tank Volume (L)		80
Total weight (Kg)		170
Dimension L×W×H		1000×650×1500
