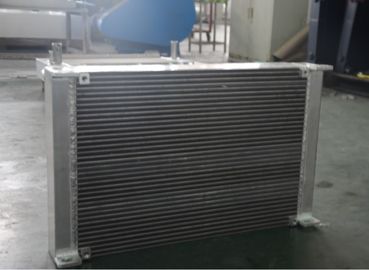

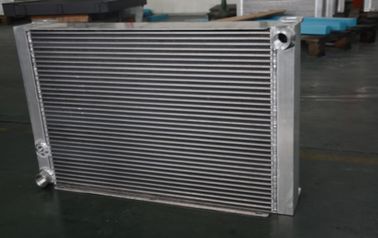

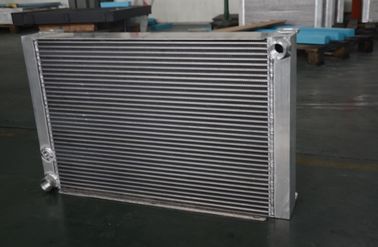

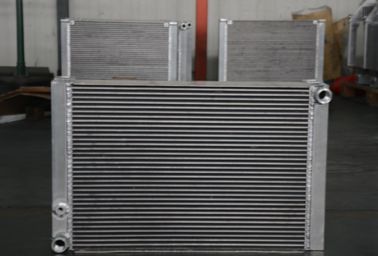

Thermal - Hydraulic performance Brazed Radiator , Hydraulic Oil Cooler

Thermal - Hydraulic performance Brazed Radiator , Hydraulic Oil Cooler

    • Thermal - Hydraulic performance Brazed Radiator , Hydraulic Oil Cooler
    • Thermal - Hydraulic performance Brazed Radiator , Hydraulic Oil Cooler
    • Thermal - Hydraulic performance Brazed Radiator , Hydraulic Oil Cooler
    • Thermal - Hydraulic performance Brazed Radiator , Hydraulic Oil Cooler
  • Thermal - Hydraulic performance Brazed Radiator , Hydraulic Oil Cooler

    Product Details:

    Place of Origin: China
    Brand Name: Jinxi
    Certification: ISO9001:2008
    Model Number: Hydraulic radiator-015

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Wooden/paper box
    Delivery Time: 10-15 working days
    Payment Terms: T/T ,Western union
    Supply Ability: 130Tons/month
    Contact Now
    Detailed Product Description

    Thermal - Hydraulic performance Brazed Radiator For Industry


    Quick Detail:

    NameBrazed oil radiatorBrand NameJinxi
    ColorSilver / blackFeatureResistant to vibration,Good cooling efficiency
    TechniqueBrazing / WeldingCertificateISO9001:2008



    1. Specifications

    • Hydraulic oil cooler
    • Thermal-hydraulic performance
    • Oil flow: 0.71kg/s
    • Cooling air flow: 0.76kg/s
    • No. of external fin 25
    • No. of inside fin 24
    • Operating pressure:15 bar
    • Test pressure:22.5 bar

    2. Description:

    1. Production:oil cooler for industrial hydraulic
    2. Technique: Vacuum Brazed and welded
    3. Structure: Plate(plate-fin)
    4. Characteristic:it’s a construction machinery oil cooler,compact structure, easy installation.
    5. Process flows: Blanking ->Fin Punching- > Cleaning - > Core Assembly- >Vacuum Brazing ->Part Machining-> Welding->Pressure Test->Drying ->Overall Inspection -> Painting -> Packaging
    6. OEM&ODM service provided
    FIN SPEC.
    FinsPitch(mm/FPI)G(mm)H(mm)
    Louvered Fin2.5~5mm/10~20FPI0.1~0.176.5~18
    Wavy Fin2.5~8mm/6~20FPI0.1~0.352.5~12
    Flattop Fin2.1~10mm/5~20FPI0.1~0.22.5~12
    Offset Fin14.5~8mm/6~16FPI0.15~0.51~5
    Offset Fin24~8mm/6~13FPI0.12~0.25~18




    Place of Origin:China
    Brand Name:Jinxi
    Certification:ISO9001:2008
    Model Number:

    Hydraulic radiator-015




    Minimum Order Quantity:1pcs
    Price:Negotiable
    Packaging Details:Wooden/paper box
    Delivery Time:10-15 working days
    Delivery Terms:FOB shanghai
    Payment Terms:T/T ,Western union
    Supply Ability:130Tons/month




    Do Not Hesitate to make decision:

    1) Design term:We have professional design team. They are mature and experienced in oil cooler for
    various type of hydraulic system which normally assembed in construction machinery.

    2) Professional factory: We are manufacturer, specializing in manufacturing heat exchangers.

    3) Serious attitude and professional spirit on sample:We can give out sample within 10 days,but the shipment charge usually paid by buyer.

    4) Rapid response to your needs:We will reply within 24 hours after receiving you letter.If you have urgent thing,welcome to call us.
