Home Products Hydraulic Oil Heat Exchanger

Welding Heat Exchanger Stainless Steel Piping 304 / 316L SS Tubes ASTM A249

Product Details:

Place of Origin:	China
Brand Name:	KORER
Certification:	ISO 9001 And Manufacture License Of Pressure Tube
Model Number:	Staight Pipe

Payment & Shipping Terms:

Minimum Order Quantity:	1 Metric Tons Per Size
Price:	Negotiable
Packaging Details:	Wooden Boxes With Angle Steel Frame Or Seaworthy Bundle
Delivery Time:	15-45Days Or Depends on Quantity
Payment Terms:	T/T L/C
Supply Ability:	10000 Metric Tons Per Year

Contact Now

Detailed Product Description

Product Name:	Stainless Steel Pipes	Standard:	ASME SA249 / ASTM A249
Material Grade:	304, 316L	Outer Diameter:	6.00mm-101.6mm
Wall Thickness:	0.30mm-2.5mm	Length:	Max.40000mm Or Custom
Highlight:	stainless steel piping

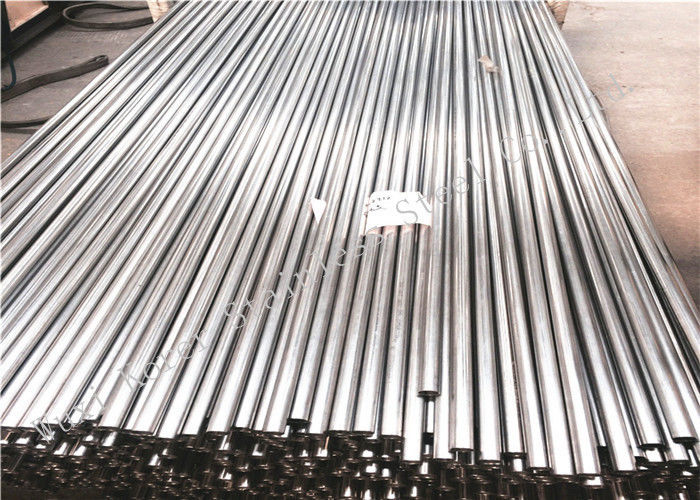

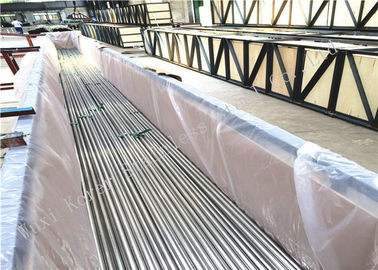

Welding Heat Exchanger Stainless Steel Piping , ASTM A249 304 / 316L SS Tubes

Quick detail:

·Product Name:Stainless Steel Pipes

·Standard: ASME SA249 / ASTM A249

·Grade: 304, 316L

·Outer Diameter : 6.00mm-101.6mm

·Wall thickness : 0.30mm-2.5mm

·Length: max.40000mm or Custom

·Surface finish: Bright Annealing, Anneal and Pickled

·Manufacture technology: TIG Welded

Description:

Material:

Grade	Chemical Composition(%)										Remark
Grade	C≤	Mn≤	P≤	S≤	Si≤	Cr	Ni	Mo	N	Cu	Remark
304	0.08	2.00	0.045	0.030	0.75	18.0~20.0	8.0~10.50		0~0.1
304L	0.030	2.00	0.045	0.030	0.75	18.0~20.0	8.0~12.0		0~0.1
316	0.08	2.00	0.045	0.030	0.75	16.0~18.0	10.0~14.0	2.0~3.0	0~0.1
316L	0.030	2.00	0.045	0.030	0.75	16.0~18.0	10.0~14.0	2.0~3.0	0~0.1

Standards:

SA249 Standard Specification For Welded Austenitic Steel Boiler,Superheater, Heat-Exchanger And Condenser Tubes.
Item	Contents	Requirements
1	Chemical Composition	Acc.to SA249 and SA480
2	Welding method	TIG Welding
3	Materail	TP304, TP304L, TP304H, TP310S, TP316, TP316L, TP316TI, TP316H, TP317L, TP321
4	Straightness	0.8mm/900mm
5	Tolerance	OD acc.to A1016/A1016M,WT +/-10%
6	Heat Treatment	Bright Annealing Temperature 1040℃
7	Mechanical Property	Mechanical Property:Enlongation 45%-65% Expansion Test:Acc.To ASTM A249 & ASTM A1016 Flange Test: Acc.To ASTM A249 & ASTM A1016 Flattening Test: Acc.To ASTM A249 & ASTM A1016 Hardness:HRB 75-90

Competitive Advantage:

We Are Manufactuer Which Are Approved With ISO 9001-2008 and Manufacture License of Pressure Tube. We Have Production experience about 20 years. We have high technical production lines with top quality products. We have win high reputation based on good quality and Competitive Prives.

Applications:

1. Pipes for Liquid Delivery.
2. Tubes for Power Industry(Thermal Power and Nuclear Power Staition) and Petrochemical Industry:Boiler, Heat-sink, Condenser and Heat-exchanger tubes
3. Tubes for Automotive Industry:Oil tube and Exaust System Tubes.
4. Tubes for Medicine and Food Industry.
5. Tubes for Mechanical and Construction.
