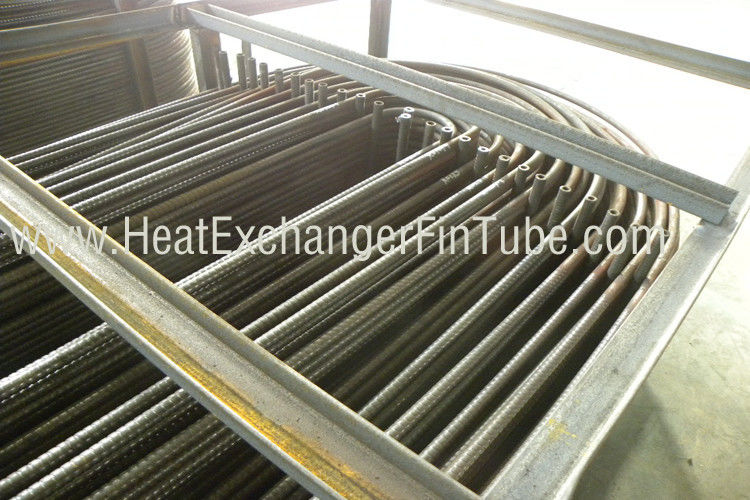

low Finned tube

TP304 / TP304L , TP316 / TP316L , Austenitic Stainless Steel Corrugated Low Fin Tube​

Quick Detail:


Description:
Manufacturing process: The fins are rolled out of outer wall of the plain tubes by a pass roller. Tubes and fins are in same piece tube. We call it “N” fin type.

Tube Materials:
ASTM A213 / A213M :Seamless Ferritic & Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes
ASTM A312/ A312M : Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes
ASTM A269/ A269M :Seamless and Welded Austenitic Stainless Steel Tubing for General Service

Delivery Range of Low Fin Tubes
We can provide the integral low fin tubes with un-finned section gaps( 5mm Min.) in the middle of core tube OR bent with designed Bend Radius.

Quality Test:
The integral low fin tube quality is assured by hydrostatic or pneumatic tests, eddy current tests & MARCO            tests in order to verify design specifications.
 Acceptance Ceritia:
 WOLVERINE  /  HPT  / GEWA-K & GEWA-KS

Delivery Condition:
Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish.
The desiccants are put into the each package for continental transportation.


Applications:
​The Integral Low Finned Tubes find the preference in the following industrial sectors:

1. Heating systems
2. Ventilation systems
3. Refrigeration and climate control systems
4. Mechanical engineering
5. Automotive manufacturing
6. Chemicals and pertrochemical and power plant technology


Specifications:
Tube and fins consist of same tube and materials as carbon steel , low-alloy steels , stainless steel , brass , copper , cooper-nickel alloys , aluminum bronze , nickel alloys , titanium etc...
