Thermal - Hydraulic performance Brazed Radiator , Hydraulic Oil Cooler

Product Details:

Place of Origin:	China
Brand Name:	Jinxi
Certification:	ISO9001:2008
Model Number:	Hydraulic radiator-015

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Wooden/paper box
Delivery Time:	10-15 working days
Payment Terms:	T/T ,Western union
Supply Ability:	130Tons/month

Contact Now

Detailed Product Description

High Light:

oil cooler heat exchanger

transmission Heat Exchanger

Thermal - Hydraulic performance Brazed Radiator For Industry

Quick Detail:

Name	Brazed oil radiator	Brand Name	Jinxi
Color	Silver / black	Feature	Resistant to vibration,Good cooling efficiency
Technique	Brazing / Welding	Certificate	ISO9001:2008

1. Specifications

Hydraulic oil cooler
Thermal-hydraulic performance
Oil flow: 0.71kg/s
Cooling air flow: 0.76kg/s
No. of external fin 25
No. of inside fin 24
Operating pressure:15 bar
Test pressure:22.5 bar

2. Description:

Production:oil cooler for industrial hydraulic
Technique: Vacuum Brazed and welded
Structure: Plate(plate-fin)
Characteristic:it’s a construction machinery oil cooler,compact structure, easy installation.
Process flows: Blanking ->Fin Punching- > Cleaning - > Core Assembly- >Vacuum Brazing ->Part Machining-> Welding->Pressure Test->Drying ->Overall Inspection -> Painting -> Packaging
OEM&ODM service provided

FIN SPEC.
Fins	Pitch(mm/FPI)	G(mm)	H(mm)
Louvered Fin	2.5~5mm/10~20FPI	0.1~0.17	6.5~18
Wavy Fin	2.5~8mm/6~20FPI	0.1~0.35	2.5~12
Flattop Fin	2.1~10mm/5~20FPI	0.1~0.2	2.5~12
Offset Fin1	4.5~8mm/6~16FPI	0.15~0.5	1~5
Offset Fin2	4~8mm/6~13FPI	0.12~0.2	5~18

Place of Origin:	China
Brand Name:	Jinxi
Certification:	ISO9001:2008
Model Number:	Hydraulic radiator-015

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Wooden/paper box
Delivery Time:	10-15 working days
Delivery Terms:	FOB shanghai
Payment Terms:	T/T ,Western union
Supply Ability:	130Tons/month

Do Not Hesitate to make decision:

1) Design term:We have professional design team. They are mature and experienced in oil cooler for
various type of hydraulic system which normally assembed in construction machinery.

2) Professional factory: We are manufacturer, specializing in manufacturing heat exchangers.

3) Serious attitude and professional spirit on sample:We can give out sample within 10 days,but the shipment charge usually paid by buyer.

4) Rapid response to your needs:We will reply within 24 hours after receiving you letter.If you have urgent thing,welcome to call us.

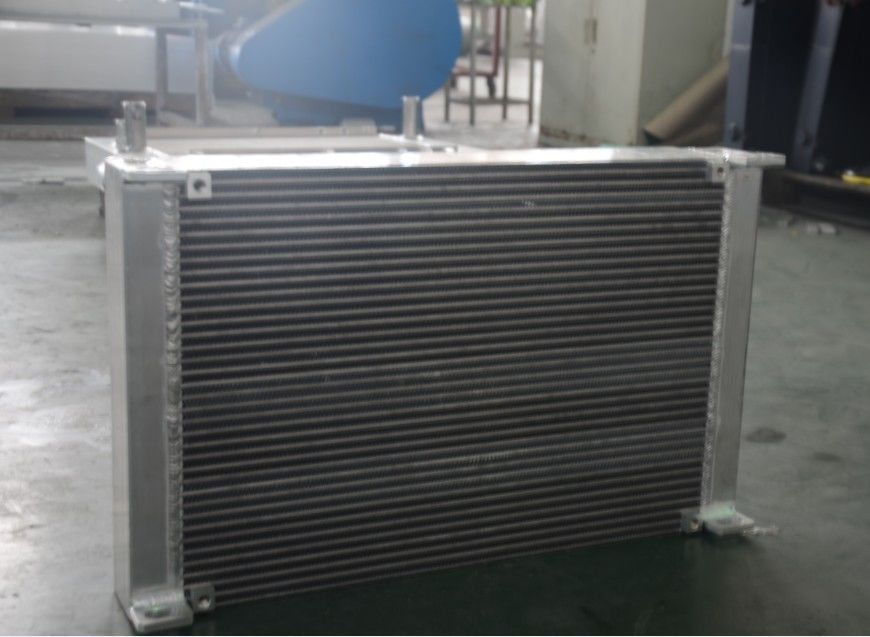

Thermal - Hydraulic performance Brazed Radiator , Hydraulic Oil Cooler 0
