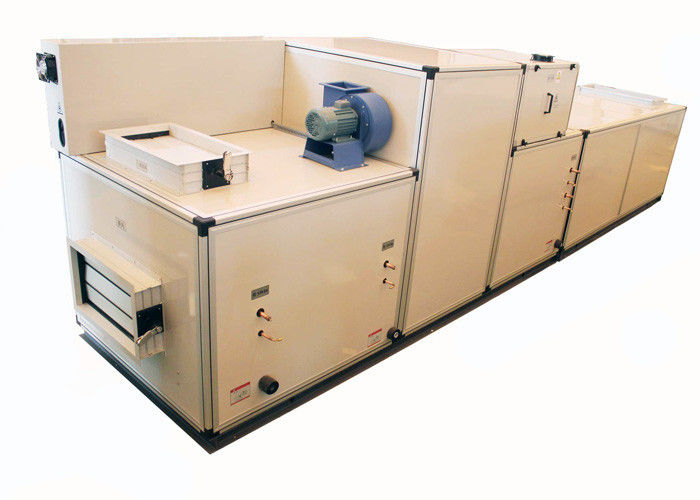

Swimming Pool Air Handling Units With Cooling And Wheel Dehumidification

Swimming Pool Air Handling Units With Cooling And Wheel Dehumidification

  • Swimming Pool Air Handling Units With Cooling And Wheel Dehumidification
  • Swimming Pool Air Handling Units With Cooling And Wheel Dehumidification
  • Swimming Pool Air Handling Units With Cooling And Wheel Dehumidification
Swimming Pool Air Handling Units With Cooling And Wheel Dehumidification
Product Details:
Place of Origin: China
Brand Name: Head-Power
Certification: ISO
Model Number: ZCK025
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Wooden case/carton case
Delivery Time: 25~30days
Payment Terms: TT, LC
Supply Ability: 2000pcs per year
Contact Now
Detailed Product Description
Product Name: Air Handling Unit Application: Swimming Pool
Air Flow: 2500 M3/h Cooloing Coil: Chilled Water
Panel Material: Galvanized Steel Panel Power Supply: 380V/3PH/50Hz
Panel Thickness: 50mm Frame: Aluminium Alloy
High Light:

hvac air handling unit

,

AHU Air Handling Unit

Swimming Pool Air Handling Units With Cooling And Wheel Dehumidification




Specifications:



Model



ZCK025

Supply Air Flow

m3/h

2500

External Static Pressure

Pa

150

Power supply



380V/3PH/50Hz

Filter

Prefilter



Nylon filter, fresh air inlet

Primary filter



Plate filter G4, before cooling coil

Middle filter



Non woven bag filter, F7


First cooling coil

Capacity

kW

20

Type



Copper tubes with aluminium fins

Fluid



Chilled water

Inlet/outlet water temp.



7 / 12℃

Max.velocity m/s 2.5

Water flow

m3/h

3.5

Dehumidification

Type



Wheel dehumidifier

Air flow

m3/h

2500

Regeneration heater kW 21

Second cooling coil

Type



Copper tubes with aluminium fins

Capacity

kW

15

Inlet/outlet water temp. 7 / 12
Water flow m3/h 2.6

Eliminator

Type



Not included

Supply fan

Type



Centrifugal type

Air volume

m3/h

2500

External static pressure

Pa

150

Motor power

kW

0.75

Drive method



Direct drive

Electric controller (Optional)



DDC Electric Controller



Description:


1. 50mm thick sandwich panels with PU foam insulation, external panel is painted galvanized steel,                 inside panel could be painted galvanized steel sheet or stainless steel sheet, anti-corrosion,                        suitable for humid environment of swimming pool.

2.  Aluminium alloy frame, anti cold bridge design, elimination of thermal bridges;
3. Access door: Outward opening for negative pressure section, inward opening for positive                           pressure section, reduce air leakage. Hinged door or panel door. Access window is optional.
4. Fan system: DIDW backward or forward curved blade centrifugal fan, direct driven plug fan is                      also offered for some special AHU;
5. Motor: famous brand good quality motor, insulation class F. Belt drive, high quality V-shaped belt,                anti vibration rubber or spring damper, reduce vibration transmission.
6. Copper tubes with hydrophilic aluminium fins, high heat exchange efficiency, anti-corrosion.
7. Drain pan: Suitable slope drain pan, easy for water drainage, stainless steel or painted galvanized             steel material. All pans have done leakage and pressure test.
8. Filteration: Adopt nylon or metal mesh prefilter, non woven plate filter for primary filter G3~G4(Efficiency     55%~75%), bag filter for secondary filter F7~F9(efficiency 80%~95%), HEPA filter or special function          filter is optional

9. Wheel dehumidication: strong capacity of dehumidification, excellent performance in low or high                   temperature, alkali environment.
10. Swimming pools and spa baths are especially energy-intensive buildings, they offer because of this           fact numerous opportunities for energy-saving and energy-recovering measures. Usually, there                are plate heat exchangers or wheel heat recovery units for choice , save energy in a maximum                    degree.


Applications:


Swimming pools, spa baths, sauna bath house, or other humid area requirement cooling and dehumidiciation.



Could be worked as supply air with cooling, dehumidification separately or together according to necessary.
