single head engraving Laser Machine Spare Parts industry water chiller

single head engraving Laser Machine Spare Parts industry water chiller

  • single head engraving Laser Machine Spare Parts industry water chiller
  • single head engraving Laser Machine Spare Parts industry water chiller
single head engraving Laser Machine Spare Parts industry water chiller
Product Details:
Place of Origin: China
Brand Name: HUNST Laser
Certification: CE
Model Number: Laser water chiller
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: Standard packing for laser lens.
Payment Terms: T/T, Western Union
Supply Ability: 50000 Piece/Pieces per Month
Contact Now
Detailed Product Description
LED Display: Yes Temp Control: Yes
Water Cooling: Yes
High Light:

laser cutting machine spare parts

,

laser cutter parts


industry water chiller for single head laser engraving machine and double head laser cutting machine

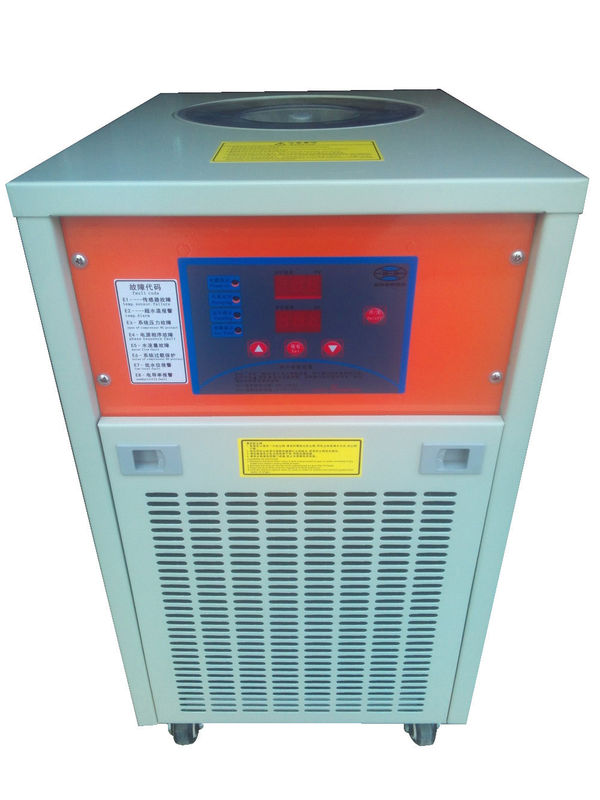

The water chiller for laser is an indispensable part for safe and stable operation. Eastern Laser specially designs and promotes brand new CW series and SL series industrial water chillers, which feature superb and stable cooling performance, useful water flow alarm and high temperature alarm. Besides, the water chiller is convenient to move, easy to install and operate, and well received by laser machine manufactures. And the laser tube cooler is often used as laser engraving water chiller, laser marking water chiller, laser cutting water chiller, etc.



Technical Parameters of Water Chiller for Laser

Model

CW3000

CW5000

CW5200

SL-1

SL-2

Operating voltage

220V/110V

220V/10V

220V/110V

220V/110V

220V/110V

Operating frequency

50Hz/60Hz

50Hz/60Hz

50Hz/60Hz

50Hz/60Hz

50Hz/60Hz

Application

One laser tube with < 80W power

One laser tube with < 150W power

Two laser tubes with < 150W power

One laser tube with < 150W power

Two laser tubes with < 150W power

Cooling capacity

-

800W

1400W

800W

1500W

Temperature control accuracy

-

±0.3℃

±0.3℃

±0.3℃

±0.3℃

Safety functions

Water flow alarm

Compressor overload protector, water flow alarm, high temperature alarm

Water Tank Capacity

6L

6L

6L

5L

8L

Water inlet and outlet diameter

10mm

10mm

10mm

10mm

10mm

Maximum head

10m

12m

12m

10m

15m

Maximum flow rate

10L/min

13L/min

13L/min

10L/min

15L/min

Net weight

9.5kg

24kg

26kg

21kg

40kg

Gross weight

12kg

27kg

29kg

24kg

43kg

Shape Dimension

49*27*38cm

58*29*47cm

58*29*47cm

33*46*48cm

34*46*64cm

Packing size

59*39*48cm

70*43*58cm

70*43*58cm

45*58*60cm

46*58*76cm
