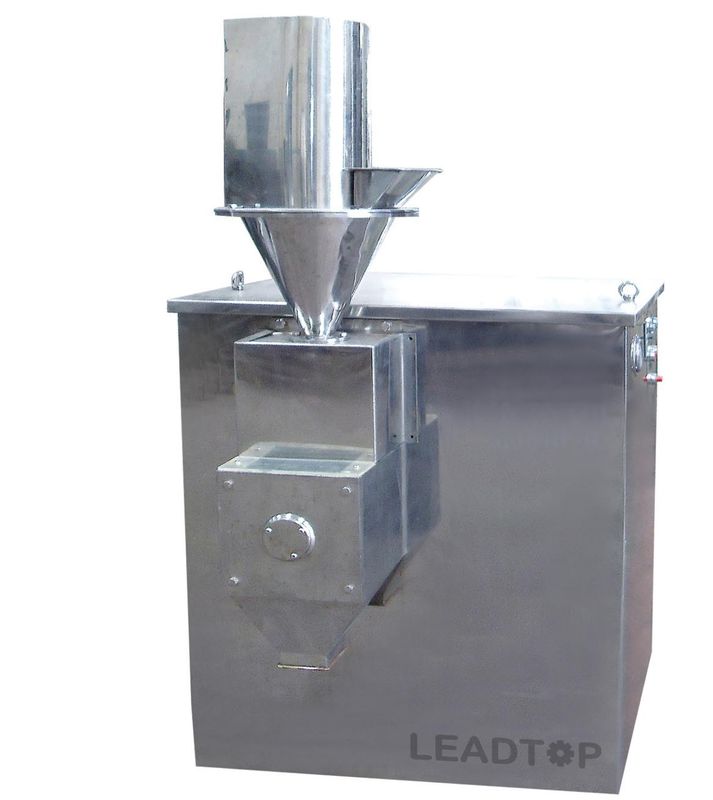

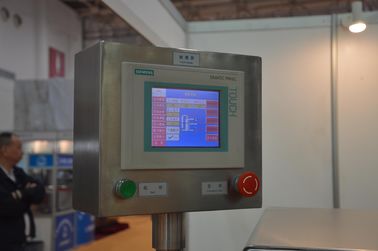

Siemens Touch Screen Dry Powder Granulating Machine Come With Water Chiller

Siemens Touch Screen Dry Powder Granulating Machine Come With Water Chiller

  • Siemens Touch Screen Dry Powder Granulating Machine Come With Water Chiller
  • Siemens Touch Screen Dry Powder Granulating Machine Come With Water Chiller
  • Siemens Touch Screen Dry Powder Granulating Machine Come With Water Chiller
Siemens Touch Screen Dry Powder Granulating Machine Come With Water Chiller
Product Details:
Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP
Model Number: GF
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Export standard wooden case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 25sets/month
Contact Now
Detailed Product Description
High Light:

wet granulation equipment

,

Granulating equipment

Siemens Touch Screen Dry Powder Granulating Machine come with water chiller



Quick Detail:





Volume of hopper: 3L-5L

Max pre-pressure of roller: 10T-15T

Material: Stainless steel 304

Revolution of roller: Adjustable

Revolution of fed raw material: Adjustable

Motor of driving roller: 4KW-7.5KW

Power Supply: 380V 50HZ Three Phase

Certificate: CE Certificate





Description:





1. The density of dry power granule is homogeneous, its solubility is good. The radio of granule formed is     high.

2. Being adapted special mechanism to feed raw material to adhere roller can not be taken place.

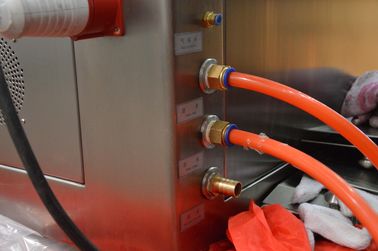

3. Because its roller is cooled through circle water, it guarantees the phenomenon of raw material to               adhere roller can not be taken place.

4. It is not necessary to use water or ethanol as humectants and to carry out the second heating and             drying. Its procedure is less and its working efficiency is high and its cost is cheap.

5. Being adapted advanced electric hydraulic pressure, its operation is a simple and its automatic content     is high.





Applications:





The granule manufactured with this machine can be used for pressing tablet, drinking granule, filling capsule etc. It is widely used for pharmaceutical industry, foodstuff industry and chemical industry to granulate. Particularly it is suitable for granulating of raw materials that can not be granulated through damp method.





Specifications:





Model GF-80 GF-120
Productive capacity 20-60kg 30-100kg
Volume of hopper 3L 5L
Size of roller φ200×80mm φ200×120mm
Max pre-pressure of roller 10T 15T
Revolution of roller Adjustable
Revolution of fed raw material Adjustable
Motor of driving roller 4KW 7.5KW
Motor of fed raw material 1.5KW 2.2KW
Motor of granulating 0.75KW 2.2KW
Motor of oil pump   1.1KW
Adjusting way of roller wheel and fed speed Electromagnetic speed control







Competitive Advantage:





1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

    California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi         (Agent), Dhaka (Agent), Laho
