Sanyo / Dakin / Copeland Scroll Compressor Chiller 9.3KW - 142.2KW

Product Details:

Payment & Shipping Terms:

Contact Now

Detailed Product Description

Function:	Chilling Water	Cooling Capacity:	32.4KW
Input Power:	10.4KW	Compressor:	1 Pc
Comp. Current:	17.5A	Power Supply:	380~400V/3PH/50HZ
Circuit Number:	1	Water Tank:	180 L
Water Pump:	1.1KW	Type:	Air Cooled
Protection:	Overload Current Protection	Noise:	75 Db(A)
Total Weight:	480KG
Highlight:	Air Cooled Scroll Chiller

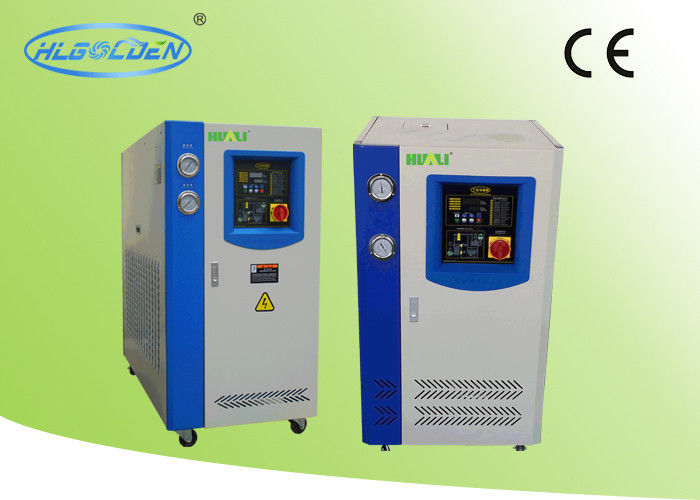

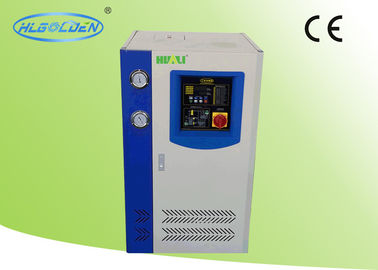

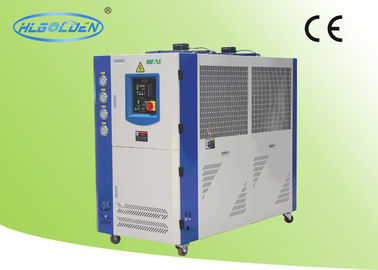

Sanyo / Dakin / Copeland Scroll Compressor Chiller 9.3KW - 142.2KW

Product Description:

World famous scroll compressor: Copeland,Dakin,Sanyo.
Adopt stainless stell water tank.
We have own processing department of red cooper piper and professional welding technician team for weld, completely eradicate any concurrency problems of weld break.
Cooling capacity:9.3-142.2KW
Support kinds of refrigerants,R22/R407C/R410A
We would like to production non-standard unit accoridng to client requirement.

Product Function:

HLLA series industrial chiller are apply widely in the Plastic industry, Electrons, Plating, Chemical

Industry, Ultrasonic wave cooling, Printing and other industrial production. It can precisely control

the exactly temperature, which requested by the modernized machinery production, and greatly

improved the production .

efficiency and product quality.

HUALI Brand Industrial chiller is easy to operate with reasonable design, high quality and complete

range of specifications. We hope it will be a good partner for your modernized industry.

Noted:

1. Air cooled industrial chiller is no need to apply with cooling tower, and convenient to install and move

in the factory, but the cooling efficiency will be affected by the ambient working condition.

2. Water cooled chiller, a little complicated to assemble the cooling tower and cooling pump, need

much more water sources, but it supply the better cooling efficiency in the higher ambient working

condition compare to air cooled one.

Product Detail:

Model HLLA ～		10SI
Rated Cooling Capacity	×1000 kcal/h	27.9
	KW	32.4
Input Power (KW)		10.4
Comp. Input Power×Qty. (KW)		8.1
Chillded Water Pump Model		HT40-15
Chilled Water Pump Power (KW)		1.1
Comp. Current (A)		17.5
Power Supply		3φ-380V-50HZ
Safety Protection		Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection,
Number of Refrigeration Circuit		1
Capacity Control (%)		0, 100
Refrigerant		R22
Condenser		Ripple Aluminum Fins around Cooper Pipe
Power lnput of Fan (KW)		1.2
Evaporator		Shell and Tube Type
Water Side Max Pressure (MPa)		1
Dia.of Pipe to Evaporator (inch)		1-1/2"
Chilled Water Flow (L/m)		92.9
Evaporator Water Pressure drop (kPa)		23
Running Noise dB(A)		75
Tank Volume (L)		180
Total weight (Kg)		480
Dimension L×W×H		1500×1100×2200
