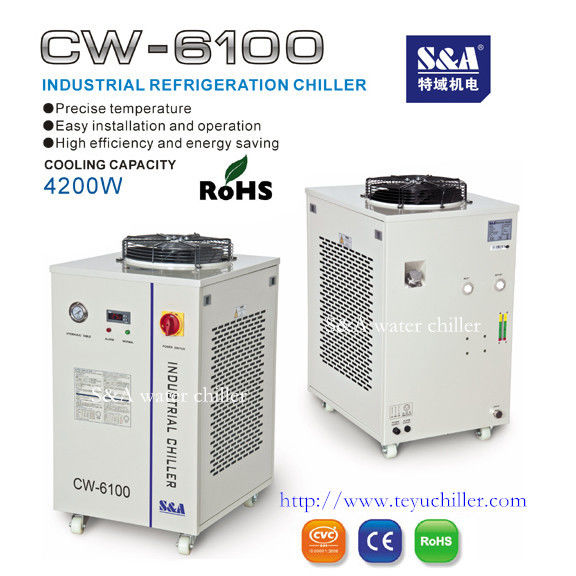

S&A air Cooled Industrial Water Chiller 4.2KW cooling capacity

Air Cooled Industrial Water ChillerCW-6100 is developed and produced by S&A company. CW-6100 has 4.2KW cooling capacity, ±0.5℃ stability, and Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;

CW-6100 water chillerparameter:

Voltage:220V; Frequency: 50/60Hz; Refrigerant: R-22 / R-410a

Pump power: 0.05KW/0.1KW/0.37~0.75KW; Tank capacity:15L

Max. lift:12M/25M/28~53M; Max. flow: 13L/min- 70L/min

N.W: 65Kgs; G.W: 77Kgs;

Dimension : 67 X 47 X 89 cm (L X W X H); Packing dimension: 74 X 60 X 109 cm(L X W X H)

CW-6100 specification:

CW-6100AI : applied to cool dual 200W CO2 glass laser tubes, or a single 400W CO2 laser tube;

CW-6100AN: applied to cool a single 150W CO2 RF laser tube, a single 150W laser diode, a single 150W solid-state laser, a single 300W-600W fiber laser or a single 36KW CNC spindle.
