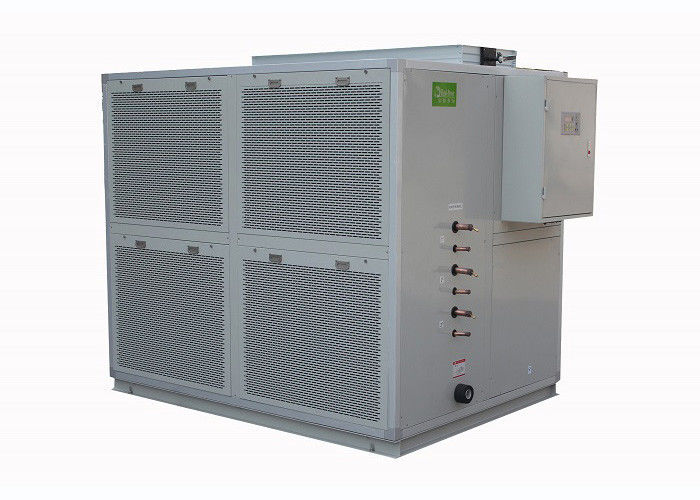

Refrigerant R407C Direct Expansion Ducted Split Condensing Unit Air Conditioner

Product Details:

Place of Origin:	China
Brand Name:	Head-Power
Certification:	CE, ISO
Model Number:	HAL50

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiation
Packaging Details:	Wooden case/carton case
Delivery Time:	25~30days
Payment Terms:	TT, LC
Supply Ability:	3,000pcs per year

Contact Now

Detailed Product Description

Product Name:	Ducted Split Air Conditioner	Application:	Industrial Cooling And Heating
Cooling Capacity:	124kw	Refrigerant:	R407C
Compressor:	Hermetic Scroll Type	Power Supply:	380V/3PH/50Hz
Dimensions(LWH) Mm:	2400x1500x 1950	Frame:	Aluminium Alloy
Highlight:	split system air conditioner

Direct Expansion(DX) Ducted Split Air Conditioner With Condensing Unit , Refrigerant R407C

Specifications:

Model			HAL50(H)
Cooling capcity		kW	124
Heating capacity		kW	129
Power supply			380V/3PH/50Hz
Refrigerant			R407C
Air Volume		m3/h	25500
External static pressure		Pa	340
Compressor	Type		Hermetic Scroll compressor
	Power	kW	39.2
	Quantity	pcs	4
Supply fan	Type		DIDW, centrifugal type
	Air volume	m3/h	25500
	Motor power	kW	11
	Drive method		Belt drive
Evaporator	Type		Copper tubes with aluminium fins
Throttle method			External balanced thermal expansion valve
Electric controller			LCD display screen, automatic microcomputer controller, failure alarm, balance operation time, Timer on/off,etc
Net weight		kg	700
Dimensions(LWH)		mm	2400x1500x 1950
Matched condensing unit			SW50
Condenser type			Copper tubes with hydrophilic aluminium fins
Condensing fan	Type		Axial type
	Fan qty	pcs	4
	Power	kW	4.4
Dimensions(LWH)		mm	230021002000
Net weight		kg	1360

Description:

1. Original new generation flexible hermetic scroll compressor: Hitachi, Copeland, Sanyo,etc.
2. Independent refrigerant system: each compressor is equipped with an independent refrigerant circuit, easy for energy regulation, save energy and ensure running reliablity.
3. Supply fan: DIDW centrifugal fan, Chinese famous brand Deton, Yilida. Fan shaft use C-45 steel, well treated and anti-rust, easy for maintainance.

4. Copper tubes with aluminium fins evaporator and condenser, copper fins is optional.
5. Microcomputer controller, simple interface, adjust temperature automatically, convenient for operation and easy for maintainance.
6. Galvanized steel sheet, outside powder coated, anti-corrosion and weather proof type condenser.
7. Floor standing duct connection type,diret air supply type, ceiling mounted type, meet requirements of different occasions.

8. Capacity range:12.3~148kW (3.5~42tons)

Applications:

Industry factories: Electronic factory,pharmaceutical factory, precision instrument factory,petrochemical

factory,tobacco factory, cooling for production process, etc
