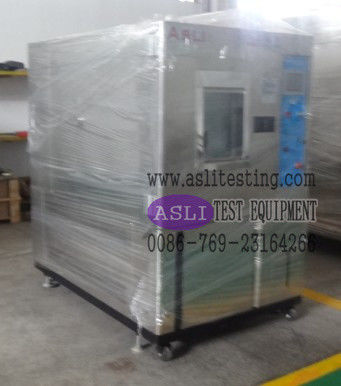

Refractories Thermal Shock Test Chamber for Seals
Programmable Thermal Shock Test Chamber/Uses:
To improve product reliability and quality control of products. Thermal shock chambers are aerospace, automotive , appliance , research and other fields necessary test equipment , assessment and determine the electrical , electronics, automotive electronics, materials and other products , parameters and performance during the environmental impact of high and low temperature test after change adaptive use for schools, factories , research position, appliances, and other business units
Compact Ultra Low Temperature Chamber/Technical Specifications :
1.Studio Size : 46*46*46cm 56*66*56cm 68*68*65cm 80*80*76cm
2.High temperature chamber temperature range : room temperature ~ +150 celsius degree
3.cold room : room temperature ~ -60celsius degree3heating and cooling rate : 1.5 celsius degree per minute on average
4.Temperature fluctuation : less than about 0.5celsius degree5Temperature error: less than about 2 celsius degree6temperature conversion time : less than 10S
7.temperature recovery time : less than 5min
8.impact of conversion: Conversion cylinder
9.Material Case : SUS # 304 stainless steel liner : SUS # 304 stainless steel
10.Cooling System: two yuan duplex compressor cooling ( air-cooled or water-cooled ) , imported French Taikang compressor , environmentally friendly refrigerant
11. Electronic control system: programmable temperature controller imported from Japan , axial fan
12.Standard configuration: observation windows, cable hole , lighting fixtures
Test Method products meet GB, GJB, IEC, MIL, appropriate test standard requirements :
Thermal Shock Tester/Control System:
1.This device is divided into three parts high temperature , low temperature zone , the test area , picking off the unique structural and thermal heat storage, thermal storage effect , the application of hot and cold air duct switching mode import.
2.test product , do thermal shock testing, the test product is not moving the way .
3.using original microcomputer -day large LCD LCD (320x240Dots) English display control system.
4.High program memory capacity , the program can be set to store 100 groups , the largest circulation set 9999Cycles, each time the maximum set 999Hrs59Mins.
5.with RS-232C communication interface device can be controlled with a computer online / editing / recording , and two group dynamic contacts (TimeSignalRelay), easy to use.
6.perform thermal shock conditions , choose 2Zone or 3Zone function.
7.have fully automated , high-precision system loop , either mechanical action, completely locked processed by the PLC.
8.The mechanical defects , with automatic machine loops and warning signals . When the input power was found unstable , with emergency stop devices.
9.Uses: mainly used in electronic components, high temperature material impact test.
Cold Temperature Shock Chamber/Main features:
1.upper and lower box-type structure conversion speed, shorter recovery time .
2.simple , reasonable air circulation system , temperature distribution.
3.Chinese program interface LCD controller .
4.Powerful refrigeration imported compressor, cooling speed .
5.complete and reliable safety device .
6.High reliability design , suitable for 24-hour continuous test
