R407C Air Cooled Industrial Water Chiller With Water Pump , Hitachi Compressor

Product Details:

Place of Origin:	China
Brand Name:	Head-Power
Certification:	ISO
Model Number:	HWAC12

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiation
Packaging Details:	Wooden case/carton case
Delivery Time:	25~30days
Payment Terms:	TT, LC
Supply Ability:	2000pcs per year

Contact Now

Detailed Product Description

Product Name:	Air Cooled Mini Chiller	Application:	Cooling Only
Cooling Capacity:	31kW	Refrigerant:	R407C
Compressor:	Hermetic Scroll Type	Power Supply:	380V/3PH/50Hz
Dimensions(LWH) Mm:	1800x900x1600	Material:	Painted Galvanized Steel Sheet
Highlight:	industrial process water chillers

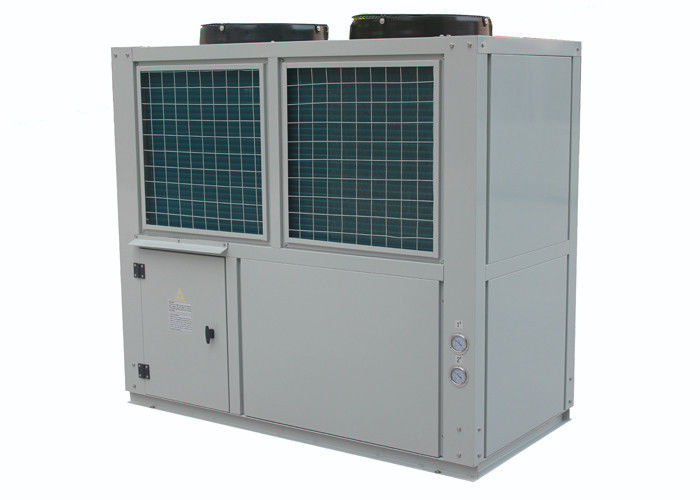

R407C Air Cooled Industrial Water Chiller With Water Pump , Hitachi Compressor

Specifications:

Model			HWAC12
Cooling capacity		kW	31
Power supply			380V/3PH/50Hz
Cooling power input		kW	10.4
Refrigerant			R407C
Compressor	Type		Hermetic Scroll
	Power	kW	9.2
	Quantity	pcs	2
Air Cooled Condenser and condensing fan	Type		Copper tubes with hydrophilic aluminium fins
	Fan type		Ultra low noise axial type
	Air discharge		Top discharge
	Air volume	m3/h	12500
	Motor power	kW	2*0.6
Evaporator	Type		Shell and tube
	Inlet/outlet water temp.	℃	12 / 7
	Water flow	m3/h	5.9
	Pressure drop	kPa	45
	Connecting pipe size	mm	DN32
Water Pump	Type		Horizontal stainless centrifugal type
	Water flow	m3/h	5.9
	Pressure head	m	20
	Motor power	kW	1.1
Expansion tank	Volume	L	8
Throttle method			External balanced thermal expansion valve
Electric controller			LCD English display screen, automatic microcomputer controller, failure warnings, error checking, balance operation time, Timer on/off, abnormal status display,etc
Safety devices			High&low pressure switch, anti-frozen protection, over load protection, overheat protection,phase sequence protection,etc
Net weight		kg	360
Dimensions(LWH)		mm	1900x800x 1600

Description:

Hermetic scroll compressor: brand Hitachi, Sanyo, Copeland,etc
Galvanized steel sheet, plate type structure, white grey color, beautiful appearance.
Intelligent control : LCD intelligent controller, individual system for each compressor, start and close according to capacity requirement, saving energy.
High heat exchange efficiency, ultra low loise axial condensing fan, copper tubes with hydrophilic aluminium fins condenser;
Dry type shell and tube evaporator: steady performance and high exchange efficiency;
Water pump and expansion tank inside, reduce installation cost.
Compact size, easy installation and maintainance, no need cooling tower.
Complete safety devices: high/low pressure switch, anti-frozen, overload protection, overheat protection, reverse&lack phase protection, etc;
Environment friendly refrigerant: R407C, R134a is optional.

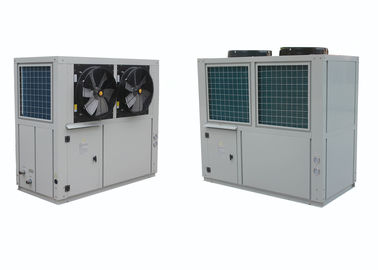

Side discharge and top discharge for option.
