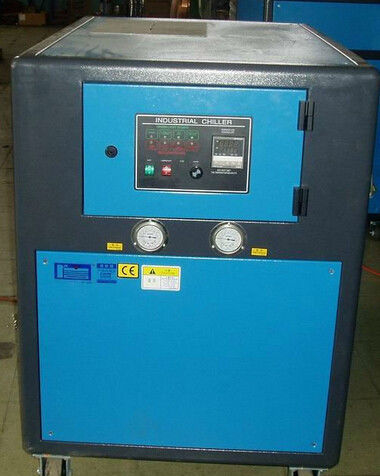

Power Saving Water Cooled Chiller , Cooling Water Chiller For Vacuum Coating

Power Saving Water Cooled Chiller , Cooling Water Chiller For Vacuum Coating

  • Power Saving Water Cooled Chiller , Cooling Water Chiller For Vacuum Coating
  • Power Saving Water Cooled Chiller , Cooling Water Chiller For Vacuum Coating
  • Power Saving Water Cooled Chiller , Cooling Water Chiller For Vacuum Coating
  • Power Saving Water Cooled Chiller , Cooling Water Chiller For Vacuum Coating
  • Power Saving Water Cooled Chiller , Cooling Water Chiller For Vacuum Coating
  • Power Saving Water Cooled Chiller , Cooling Water Chiller For Vacuum Coating
  • Power Saving Water Cooled Chiller , Cooling Water Chiller For Vacuum Coating
Power Saving Water Cooled Chiller , Cooling Water Chiller For Vacuum Coating
Product Details:
Place of Origin: ZHEJIANG,CHINA
Brand Name: KASSEL
Certification: CE,ISO
Model Number: KSWb
Payment & Shipping Terms:
Minimum Order Quantity: ONE
Price: N.A.
Packaging Details: Export Wooden Case
Delivery Time: N.A.
Payment Terms: T/T
Supply Ability: 15 SETS PER MONTH
Contact Now
Detailed Product Description
Name: Water Chiller Brand: Kassel
Power: 3N-380V 50HZ Certification: CE/ISO
Application: Plastic Injection Molding|Extruder Theory: Water Cooled
High Light:

water chiller units

,

cooling water chiller

CE Approved industrial water cooled chille / For Center Air Condition And Control Low Temperature


Quick Detail:



KASSEL water-cooled box chiller can provide chilled water with the temperature of -10~+30℃ for ice storage, cold air distribution and all other occasions requiring chilled water above -10℃, It can precisely control the temperature required by the mechanized production of modern industry, thus greatly improving the production efficiency and product quality.





Description:



1. Industrial Water Chiller is mainly applicable for working according to heat exchange principle.

2. Applicable for cooling field in modern industry without influence from environmental temperature as the necessary equipment.

3. It adopts quality and newly designed compressor and famous brand water pump and features low noise,power saving and long service life.

4. It is equipped with precise electric temperature controller and is capable of precisely controlling  the water temperature at +7°c-+35°c.

5. The condenser and heat radiator with unique design features best heat exchange efficiency.

6. The stainless steel open water tank is convenient for cleaning and maintaining .

7. The product is installed with over current protective device,high and low voltage switch and time delay  devices.

8. Automatically alarm and display the fault reason when there's fault.





Applications:



Aluminum oxidation, ultrasonic cleaning and cooling, printing, artificial leather, vacuum coating, wallpaper





Specifications:



Model KSW 3 5 8 10s 12 15s
Cooling 10³Kcal/H 7.9 13.3 21.3 27.8 31.1 41.7
Capacity Kw 9.2 15.5 24.8 32.3 36.2 48.5
Compressor Power(Kw) 2.25 3.75 6.3 7.5 8.9 11.5
Quantity 1 1 1 2 1 2
Total Power Kw 2.8 4.85 7.8 8.8 10 14.5
Evaporator Form Water Tank Plate Tube, High Efficiency Shell-And-Tube, Stainless Steel Plate
Water Flow 1.4 2.25 4 5 6 8.5
(M³/H)
Interface DN25 DN25 DN25 DN25 DN40 DN40
Size
Condenser Form Shell And Tube Type, Stainless Steel Plate
Water Flow 2.2 3.5 5.2 6.5 7.9 10.3
(M³/H)
Interface DN25 DN25 DN25 DN25 DN40 DN40
Size
Chilled Water Power(Kw) 0.37 0.55 0.75 0.75 1.1 1.5
Pump Head 28 30 28 34 33.5 32
Water Tank (L) 60 60 120 150 150 200
Weight(Kg) 150 180 260 350 400 500
Safety Protection Incomplete/Reverse Phase Warning, High&Low Voltage Protection, Overload ,current Protection, Water Shortage Warning, Anti-Freezing Protection, Delay Protection
Refrigeration Conditions chilled water inlet temperature:12℃,chilled water outlet temperature:7 ℃ cooling water inlet temperature:30℃,cooling water outlet temperature:35 ℃
Refrigeration R22 R407C R410A R404A R134A
Power 380V/3PH/50HZ
