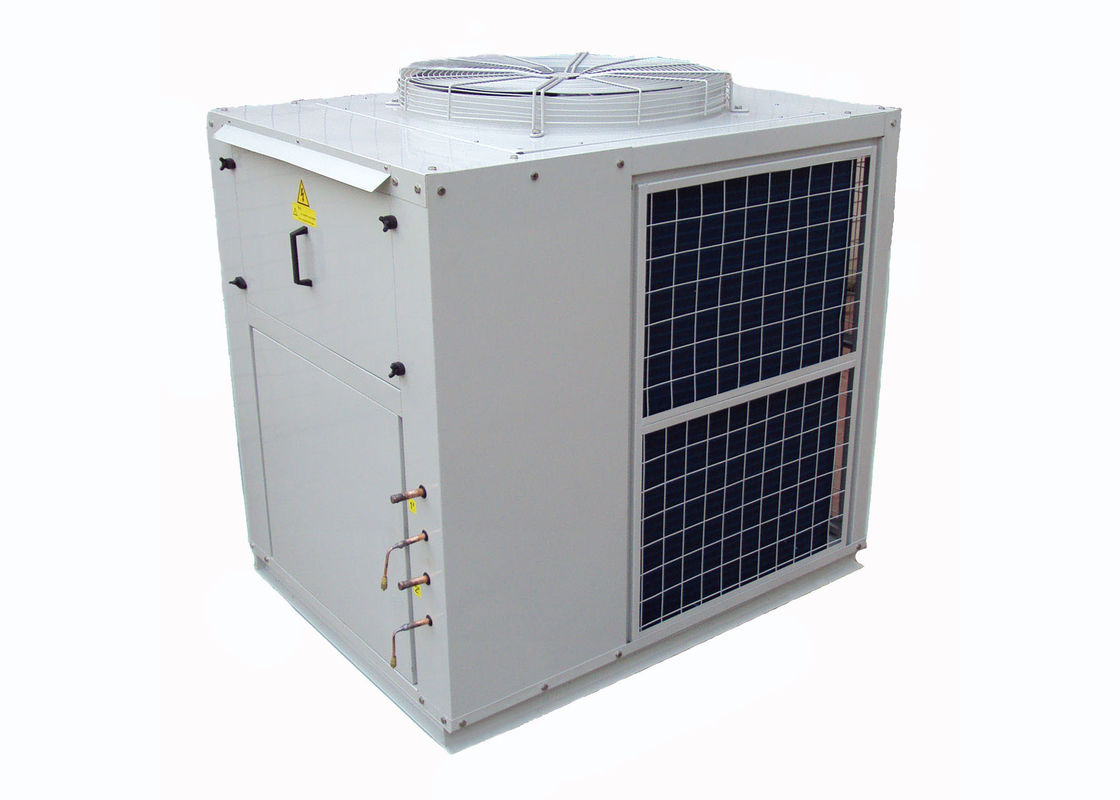

Outdoor Air Cooled Scroll Compressor Condensing Unit Ducted Split Air Conditioner

Product Details:

Place of Origin:	China
Brand Name:	Head-Power
Certification:	CE, ISO
Model Number:	SW10

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiation
Packaging Details:	Wooden case/carton case
Delivery Time:	25~30days
Payment Terms:	TT, LC
Supply Ability:	3,000pcs per year

Contact Now

Detailed Product Description

Product Name:	Outdoor Condensing Unit	Application:	Cooling And Heating
Cooling Capacity:	24.6kw	Refrigerant:	R407C
Compressor:	Hitachi/Copeland	Power Supply:	380V/3PH/50Hz
Condenser:	Hydrophilic Aluminium Fins	Material:	Painted Galvanized Steel Sheet
Highlight:	split system air conditioner

Air Cooled Outdoor Condensing Unit with Freon R407C, Scroll Compressor

Specifications:

Model			SW05	SW06	SW08	SW10	SW12	SW15
Cooling capcity		kW	12.3	14.8	19.7	24.6	29.6	37
Heating capacity		kW	12.9	15.7	21	26	31.4	39.5
Power supply			380V/3PH/50Hz
Refrigerant			R407C	R407C	R407C	R407C	R407C	R407C
Compressor	Type		Hermetic Scroll Compressor
	Power	kW	4.1	4.9	6.9	8.2	9.8	12.3
	Quantity	pcs	1	1	2	2	2	3
Condensing fan	Type		Low noise axial type
	Fan quantity		1	1	1	1	1	1
	Motor power	kW	0.25	0.25	0.55	0.55	0.55	0.75
	Drive method		Direct drive
Condenser	Type		Copper tubes with hydrophilic aluminium fins
Dimensions(LWH)		mm	840840 950	840840 950	940940 1150	10501050 1150	11501050 1150	12501200 1300
Net weight		kg	130	140	210	240	360	380

Description:

1. Flexbile hermetic scroll compressor, high and steady work performance, Hitachi, Copeland, Sanyo, etc.
2. Low noise axial condensing fan, motor protection IP54, Class F .
3. Anti-corrosion condenser, hydrophilic aluminium fins, optional copper fins
4. Galvanized steel sheet, outside powder coated, anti-corrosion and weather proof type condenser.

5. For standard model, compressors are installed in condensing unit.

6. Refrigerant: R407C, optional R22,R134A.

7. Wide cooling capacity range: 13~156kW

Applications:

1. The air cooled condensing unit can be matached with ducted split air conditioner, floor standing air conditioner, dx type air conditioning unit.

2. The condensing units are also available separately without controller.

3. Copper fins condenser is optional for higher configuration
