OEM ODM 241KW Screw Type Water Cooler Plastic Chiller with Hanbell Compressor

OEM ODM 241KW Screw Type Water Cooler Plastic Chiller with Hanbell Compressor

  • OEM ODM 241KW Screw Type Water Cooler Plastic Chiller with Hanbell Compressor
  • OEM ODM 241KW Screw Type Water Cooler Plastic Chiller with Hanbell Compressor
  • OEM ODM 241KW Screw Type Water Cooler Plastic Chiller with Hanbell Compressor
  • OEM ODM 241KW Screw Type Water Cooler Plastic Chiller with Hanbell Compressor
OEM ODM 241KW Screw Type Water Cooler Plastic Chiller with Hanbell Compressor
Product Details:
Place of Origin: DongGuan, GuangDong
Brand Name: HIGOLDEN
Certification: CE
Model Number: HLWW~240DI
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 45 days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 100 Units per Month
Contact Now
Detailed Product Description
Function: Industry Chilled Water Cooling Capacity: 241 KW
Input Power: 48.6 KW Compressor: 2 Pcs
Power Supply: 380~400V/3PH/50HZ Circuit Number: 2
Type: Water Cooled Chiller Noise: 75 Db(A)
Total Weight: 2520 KGS Refrigerant: R22
High Light:

Water Cooler Chiller

,

Air Cooled Scroll Chiller



OEM / ODM 241KW Screw Type Water Cooling Chiller Plastic with Hanbell Compressor




Production Description:



1. The chiller adopt high-quality compressor.

2. You could control the temperature: Chilled Water Range: 5~20°C;
3. The chiller is designed to be with Phase reversion protection, Phase lack protection, Overload

current protection, Discharge air temp. protection, Low & High pressure protection, Low temp.

protection, Water flow protection etc. When malfunction happened, it could alarm and show the cause

of the problem in time.
4. This series chiller can customize base on the requirement of clients.

5. CE certification.





Product Function:


1) High efficient, the chiller cop is high to 4.1~5.6.
2) Adopt High quality Hanbell compressor for our Chiller
3) OEM, ODM is accepted.





Warranty and Payment:



1. One year warranty.

2. 1% free spare parts along with the shipment.

3. Client special requests are also welcome for discussion.

4. T/T, 30% in advance, 70% should be paid before shipment.

5. D/P, L/C etc is also acceptable for discussion.





Packing:



Our standard packaging is wooden case, of course it could depends on clients special requests.





Product Detail:



Model  HLWW ~ 240DI 430DI 630DI 860DI 1210DI 1280DI
240DRI 430DRI 630DRI 860DRI 1210DRI 1280DRI
Rated Cooling Capacity   ×1000kcal/h 207.1 370.2 539.5 735.0 1042.3 1100.6
KW 241 431 627 855 1212 1280
USRT 68.5 122.4 178.4 243.0 344.7 363.9
Input Power KW 48.6 80.4 116.8 152.2 214.6 226.6
Comp. Input Power×Qty.  (KW) 24.3×2 40.2×2 58.4×2 76.1×2 107.3×2 113.3×2
Comp. Current (A) 81.8 135 196.4 256 360.6 380.8
Refrigerant R22
Power Supply 3φ-380V-50HZ
Safety Protection Phase reversion protection, Phase lack protection,
Overload current protection, Discharge air temp. protection,
Low & High pressure protection, Low temp. protection,
Water flow protection,
Number of Refrigeration Circuit 2
Capacity Control (%) 0, 33, 50, 66.5, 83, 100
Refrigerant Charge (Kg) 36 64 92 124 180 188
Condenser Shell and Tube Type
Water Side Max Pressure (MPa) 1
Dia. of Pipe to Condenser (inch) 3" 4" 5" 5" 4"×2 4"×2
Cooling Water Flow (m3/h) 49.8 87.9 128.0 173.2 245.4 259.1
 Condenser Water Pressure drop (kPa)  45 46 48 49 49 50
 Evaporator Shell and Tube Type
Water Side Max Pressure (MPa) 1
Dia.of Pipe to Evaporator (inch) 3" 4" 5" 5" 6" 6"
Chilled Water Flow (m3/h) 41.4 74.0 107.9 147.0 208.5 220.1
Evaporator Water Pressure drop (kPa) 31 40 54 44 47 47
Running Noise dB(A) 75.0 75.0 75.0 75.0 75.0 75.0
Total weight (Kg) 1570 2150 2820 3250 3860 4150
Running Weight (Kg) 1990 2880 3700 4350 5060 5370




Product Show:

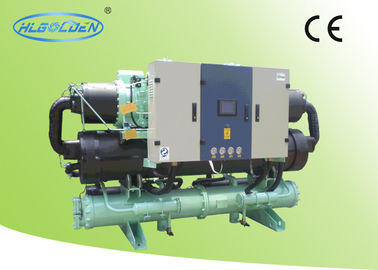

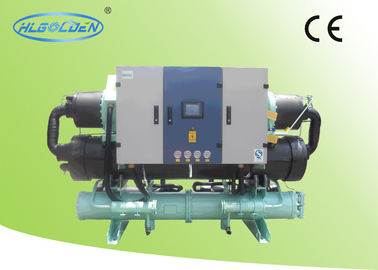

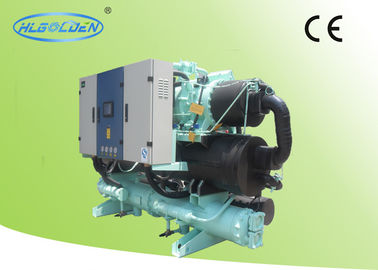

OEM ODM 241KW Screw Type Water Cooler Plastic Chiller with Hanbell Compressor 0OEM ODM 241KW Screw Type Water Cooler Plastic Chiller with Hanbell Compressor 1OEM ODM 241KW Screw Type Water Cooler Plastic Chiller with Hanbell Compressor 2
