Launch CNC-402A Auto Maintenance Tools For Injector Clean / Tester

Launch CNC-402A Auto Maintenance Tools For Injector Clean / Tester

  • Launch CNC-402A Auto Maintenance Tools For Injector Clean / Tester
Launch CNC-402A Auto Maintenance Tools For Injector Clean / Tester
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Launch
Certification: CE,RoHS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard carton package
Delivery Time: within 2 working days
Payment Terms: T/T,Western Union
Supply Ability: 1000 Set/Sets per Month
Contact Now
Detailed Product Description
High Light:

tools for car maintenance

,

car mechanic tools

Original Launch CNC-402A injector cleaner & tester Auto Maintenance Tools





Quick Detail:



1. On-vehicle cleaning
2. Intake pipe cleaning
3. Throttle cleaning
4. TWC cleaning





Description:

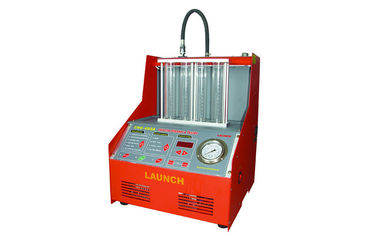

LAUNCH CNC-402A Injector Cleaner& Tester Machine
CNC-402A is an advanced electromechanical product, which can clean and test Auto engine injectors by simulating engine working conditions. It can also perform cleaning on the injectors and fuel supply system on vehicle.









Application



1. Ultrasonic cleaning: To perform simultaneous cleaning on several injectors, to remove the carbon deposits on the injector completely.
2. Uniformity/Sprayability test: To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the lighting of backlight. This test is also for reverse flush.
3. Leakage test: To test the sealing and dribbling conditions of injectors under system pressure.
4. Injecting flow test: To check the injecting amount of the injector in 15 seconds of constant injection.
5. Auto. test: To test injectors by simulating different working conditions.
6. n-vehicle cleaning: The unit is equipped with various adaptors and couplers that facilitate cleaning on the injectors on vehicle.







Specification



Temperature -10~+40°C
Relative humidity Intensity of outer magnetic field: <400A/m
  No naked flame within 2m
Power supply AC220V±10%, 50/60Hz; AC110V±10%, 50/60Hz
Main unit power 200W
Ultrasonic cleaner power 100W
imulated RPM range 10~9990rpm; step: 10rpm
Time range 1~9999s
Pulse width 0.5~25ms; step 0.1 ms
Fuel tank capacity 4000ml
Dimensions 400mm×410mm×580mm
Weight 27kg
