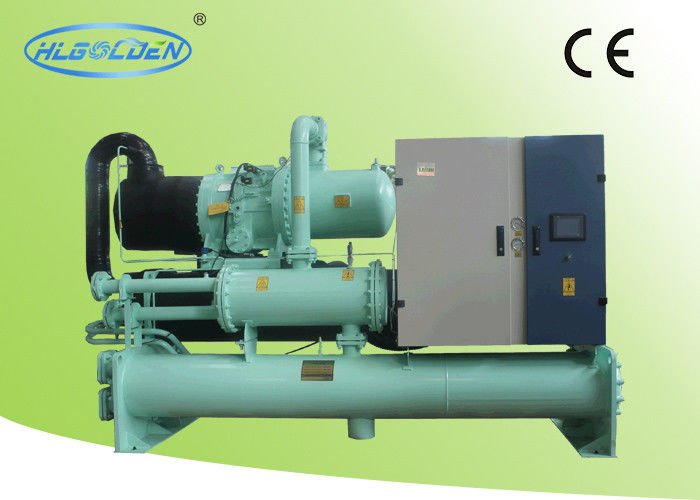

Name: Large Capacity 700KW Screw Water Chiller for Plastics Industry , CE Approvals
Brand: GOLDEN
SKU: HLWW~610SI
Rating: 4.5 (103 reviews)

Home Products Industrial Water Chiller

Large Capacity 700KW Screw Water Chiller for Plastics Industry , CE Approvals

Product Details:

Place of Origin:	DongGuan, GuangDong
Brand Name:	HIGOLDEN
Certification:	CE
Model Number:	HLWW~610SI

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	45 days
Payment Terms:	T/T, Western Union, L/C, MoneyGram
Supply Ability:	100 Units per Month

Contact Now

Detailed Product Description

Function:	Industry Cooling	Cooling Capacity:	701 KW
Input Power:	122.7 KW	Compressor:	1 Pcs
Power Supply:	380~400V/3PH/50HZ	Circuit Number:	1
Type:	Water Cooled Chiller	Noise:	75 Db(A)
Total Weight:	2520 KGS	Refrigerant:	R22
Highlight:	Air Cooled Scroll Chiller

Large capacity 700KW Screw Water Chiller for Plastics industry , CE Approvals

Production Description:

Golden industrial water cooled chiller is one of our leading products with features as below:

Open Type Screw Water Cooled Industrial Chiller;
High EER, Compact Structure;
Multi-protection System;
Touch Screen Control;

This series is widely used in industry fields, such as:

1. Plastics industry

2. Electronic industry

3. Electroplating industry

4. Mechanical industry

5. Building industry

6. Vacuum coating

7. Food industry

8. Chemical fiber industry

Product safety protection

1. Phase reversion protection.

2. Phase lack protection.

3. Overload current protection.

4. Discharge sir temp. protection.

5. Low&high pressure protection.

6. Low temp. protection.

7. Water flow protection.

Product Remarks:

1. Packing: Standard wooden pallet.

2. Delivery Day: 35~45 working days after deposit is confirmed.

3. Delivery term: CIF,FOB or EX-Work etc are welcomed.

4. Payment term: 30% deposit by T/T, clear payment before delivery.

Or 100% Irrevocable non-transferred L/C at sight.

5. Warranty: 12 months from the date of shipment.

6. Validity: 30 days.

7. Payment currency: USD

Product Detail:

Model HLWW ～		700SI	790SI	1010SI	1210SI	1750SI	2000SI
Model HLWW ～		700SRI	790SRI	1010SRI	1210SRI	1750SRI	2000SRI
Rated Cooling Capacity	×1000kcal/h	602.4	677.6	866.6	1042.7	1506.1	1721.1
	KW	701	788	1008	1213	1752	2002
	USRT	199.2	224.1	286.6	344.8	498.0	569.1
Input Power	KW	122.7	136.3	174.2	208.1	297.5	336.5
Comp. Input Power×Qty. (KW)		122.7×1	136.3×1	174.2×1	208.1×1	297.5×1	336.5×1
Comp. Current (A)		206.3	229.2	292.9	349.8	500.1	565.7
Refrigerant		R22
Power Supply		3φ-380V-50HZ
Safety Protection		Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection,
Number of Refrigeration Circuit		1
Capacity Control (%)		0, 50, 75, 100
Refrigerant Charge (Kg)		102	115	148	177	256	292
Condenser		Shell and Tube Type
Water Side Max Pressure (MPa)		1
Dia. of Pipe to Condenser (inch)		5"	5"	5"	6"	8"	8"
Cooling Water Flow (m3/h)		141.6	159.0	203.3	244.3	352.4	402.1
Condenser Water Pressure drop (kPa)		51	58	67	71	84	89
Evaporator		Shell and Tube Type
Water Side Max Pressure (MPa)		1
Dia.of Pipe to Evaporator (inch)		5"	5"	5"	5"	8"	8"
Chilled Water Flow (m3/h)		120.5	135.5	173.3	208.5	301.2	344.2
Evaporator Water Pressure drop (kPa)		47	79	58	72	76	79
Running Noise dB(A)		75.0	75.0	75.0	75.0	75.0	75.0
Total weight (Kg)		2520	2820	3220	3680	4420	4780
Running Weight (Kg)		2800	3240	3750	4250	5020	5380
