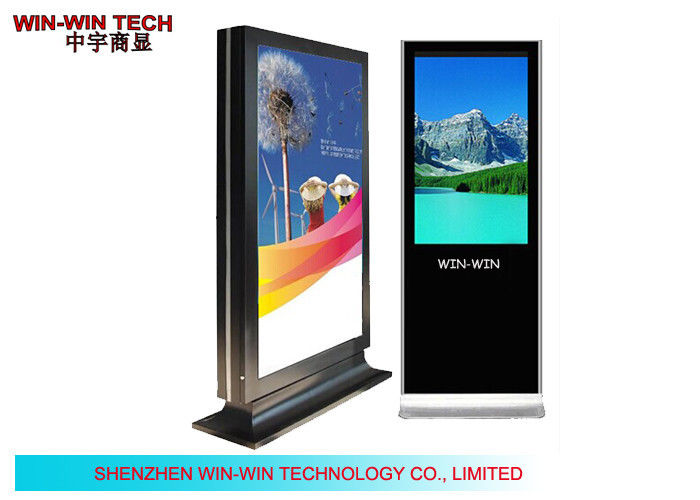

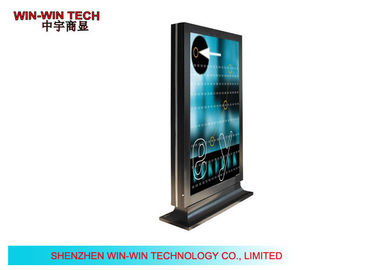

IP65 Floor Standing Digital Signage Outdoor Advertising Monitors 1500cm/d

IP65 Floor Standing Digital Signage Outdoor Advertising Monitors 1500cm/d

  • IP65 Floor Standing Digital Signage Outdoor Advertising Monitors 1500cm/d
  • IP65 Floor Standing Digital Signage Outdoor Advertising Monitors 1500cm/d
IP65 Floor Standing Digital Signage Outdoor Advertising Monitors 1500cm/d
Product Details:
Place of Origin: China
Brand Name: LG / SAMSUNG/ AUO
Certification: CE/ROHS/FCC/SGS
Model Number: WW-F65A
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 5,000pcs per month
Contact Now
Detailed Product Description
Product Name: LCD Digital Signage Display Size Of Panel: 65 Inch
Resolution: 1920*1080P Brightness: 1500cm/d
Feature: TFT, Touch Screen Kiosk Standard: CE/ROHS/FCC/SGS
Type: Free Standing Color: White, Black, Golden, Silvery
OS: Android 4.2 / Win7 / 8
High Light:

waterproof digital signage

,

outside digital signage

IP65 Floor Standing Digital Signage Outdoor Advertising Monitors 1500cm/d





Quick details:

  1. High brightness display, visible in the sunlight..
  2. Can automatically adjust screen brightness.
  3.  With lockable door to guard against theft.
  4. Using Precision air conditioner cooling and heating.
  5. Optional panel size: 32”, 39”, 42”,46”, 47”, 50”,55”, 65”, 70”, 80”.
  6. Waterproof: IP65
  7. With remote information release system.
  8. OEM and ODM are available.



Specifications:





Technical Parameter for LCD Panel



Panel Size

65 inch LCD screen

Aspect Ratio

16:9

Active Area

1428mm(H)x803mm(V)

Max. Resolution

1920x1080

Dot Pitch

 0.744 (H) x 0.744 (W)mm

Number of Color

16.7M

Brightness

1500cd/m2

Contrast Ratio

3000:1

Responsive Time

6ms

Panel Life

above 50000 hours

Storage Medium

Flash memory card, SD Card

2gb to 36gb for the capacity





Support Ad files



Video formats

MP4(AVI:DIVX/XVID),MPG2

(DVD:VOB/MPG2), MPEG1 (VCD:

DAT/MPG1)

Audio formats

MP3

Photo formats

JPG

OSD Language

English, Chinese, French, German, Italian, Spanish,Arabic

Audio output

stereo L/R, 5W*2, 8Ω

Power supply

AC 110V - 240V, 50/60HZ

Storage Temperature

 -7 to 65 Celsius degree

Video interface

VGA HDMI CVBS S-Video





PC Standard Specification



CPU

H61

Mainboard

S-ATAII 500GB / 16MB / 7200RPM

HDD

DDR3-1333 2GB

Memory

2 x USB, 2xPS / 2.1 x RJ45, 1x Line-in,

1x Earphone, 1xMicrophone, 1xVGA

PC I/O Connectors

Built -in Realtek RTL8103EL

Network

Built-in HD audio 8 audio system

Audio







Waterproof case



Waterproof grade

IP65

Installs way

The ground installation

Protective glass

6mm AR safety glass

Temperature control system

Intelligent and changes in temperature

integration air conditioning

Touch system

Waterproof, prevent strong light touch





Description:



1. Main outer shell is made by extra quality Iron material, side frame adopts Aluminium Alloy Mould, front

frame adopts 4-6mm thickness Tempered glass, which can protect the LCD panel

2. Optional panel size: 15.6”, 17”, 19”, 22”, 24”, 26”, 32”, 39”, 42”, 47”, 55”, 65”, 70”.

3. Different color optional, normally using silvery, white, black.

4. Automatically turn up or down the volume of ad media player after finished the period of time setup to

machine according to your requirements.Support 5 groups of auto power-on/off timer, able to set those 5 groups of time one day and 7 days in one week.

5. Imported brand full HD LCD panel, clear and bright picture quality, more lower power consumption.

6. With lockable door to avoid take away flash memory card and advertising playing program.

7. Built-in IR touch screen, using the latest high precision touch technology, unique circuit design, intelligent

decision and infrared anti-interference and other advanced technology, strong stability, sensitive response.

8. Vertical solid base, it is easy to operate and install.

9. Support 3G, WIFI, Ethernet network, optional.

10. New full high grade outdoor LCD Panel, can adjust brightness automatically.

11. The products pass the national mandatory 3 c authentication, and has the national high and new

technology enterprise development of the software copyright certificate.

12. You can set rolling caption and LOGO on the display, rolling caption is showed at the bottom of

LCD Screen in the advertisement  program.

13. With super long time setting function, Automatic to play advertising programs , all the year round without the

personnel control .

14. Upgrade contents of the memory card (or built - in memory) by simple inserting an USB flash drive, no need

to take out to the memory card.

15. Built in clock and calendar function in the system of player.

16 Support many kinds of playback modes, such as circulation, timing, spots and so on.

17. Video format: MPEG1 / MPEG2 / MPEG4 / ASP / WMV / AVI

18. Audio format: Wave / MP3 / WMA /AAC

19. Image format: JPEG / BMP / TIFF / PNG / GIF

20. Play mode: Power on, single card auto loop play, classified auto loop play, multi cards auto loop

display etc.

21. OTG: Support copy, delete, remove, rename, build new file among different cards.



Application:



1. Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops,

 large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

2. Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;

3. Non-profit Organizations: Telecommunications, post offices, hospital, schools;

4. Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls,

5. stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;

6. Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;

7. Entertainments: Movie theaters, fitness halls





Our products advantage:


1.We promise 100% full new brand A+ LCD panel, generally speaking adopt LG, Samsung,it owns
long use life and good visual effect.
2. We have English after sale service engineers provide after sales service by English directly, all the problems

can be solved in time.
3. We have our own outer shell&enclosure factory to accept OEM&ODM design order, quite experienced

 in customized item for client
