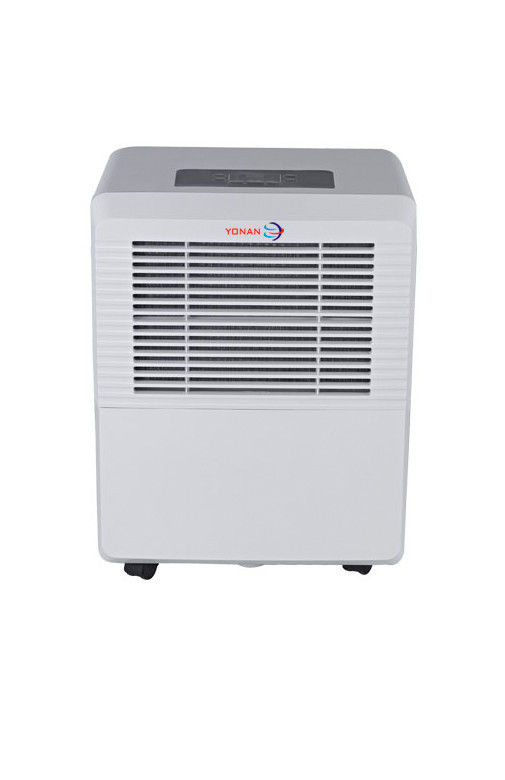

Low Temperature Dehumidifiers

Sale model

YDK-50AEN1-BA9

Power supply

115V~ 60Hz, 1Ph

Performance

Moisture removal

50

Rated.input consumption

520

Rated. current

4.7

Energy factor(EEV)

1.85

Max. input consumption

Max. current

Starting current

22

Power cord

16# / SP007

Control type

Electronic Control

System Data

Refrigerant type

R410A/0.22kg

Design pressure

4.2/1.5

Water tank volume

6

Air flow (High/Mid/Low)

320/280

Noise level (High/Mid/Low)

58.5

Applicable Ambient

RH Range Manual

35%～85%RH

Ambient temp

5～35

Application area

3000

Dimension  (W*D*H)

391x275x590

Packing  (W*D*H)

422x312x615

Net/Gross weight

16.5/17.5

Stuffing quantity (20'/40'/40'HQ)

303/624/832

Compressor

Model

YZG-A051Y2D2T1

Type

ROTARY

Brand

Qing an

Fan motor

Model

YDC19-4AS

Brand

welling

Input

66/-/58.5

Capacitor

6.0

Speed(High/Mid/Low)

1070 / -- / 960

Evaporator

Number of rows

2

Tube pitch(a)x row pitch(b)

21x13.37

Fin spacing

1.3

Fin type (code)

Hydrophilic aluminium

Tube outside dia.and type

Φ7,innergroove tube

Coil length x height x width

276x231x26.74

Number of circuits

1

Condenser

Number of rows

3

Tube pitch(a)x row pitch(b)

19.5x11.6

Fin spacing

1.2

Fin type (code)

UnHydrophilic aluminium

Tube outside dia.and type

Φ5,innergroove tube

Coil length x height x width

276x234x34.8

Number of circuits

1
