Aerosol can spray filling machine

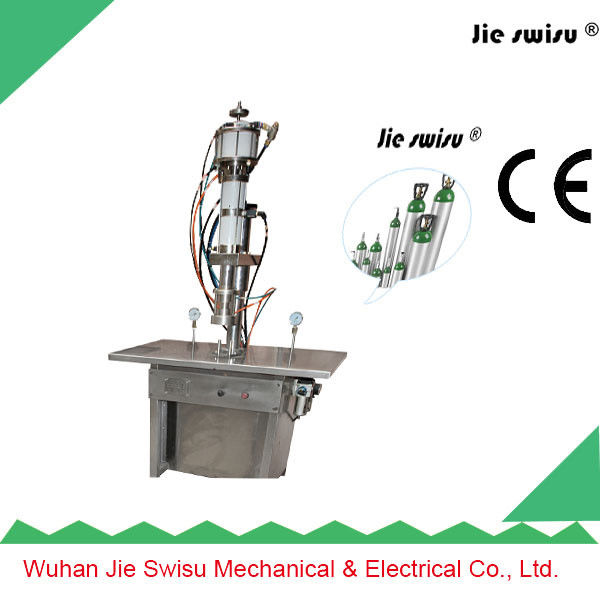

CJXH-1600D1 under cap Frozen Aerosol Filling Machine

Machine description：

1.It can be used for filling the refrigerant (F12,F22,R134a) ,air condition lubricants and butane gas cartridge.

2.Combines vacuuming ,dosing filling ,sealing and recovery. It will fill under the cap and sealing immediately at the vacuum working situation.It is easy to operate with Piston Vacuum pump, prepollent booster pump ,recycle pump. Good air tightness and measuring accuracy .

Technical parameters:

Filling range:100ml-1000ml

Available valve:1”(25.4mm)

Applicable aerosol can diameter:35-75 (mm)

Applicable aerosol can height:80-350(mm)

Max .air consumption :12(L/min)

Sealing accuracy:≤±1%

Max loss:≤3ml

Gas accuracy:≤±1%

Production rate :600-1000cans /hr

Packing dimension:1000*550*1650mm 170kg
650*480*650mm 70kg

Packaging & Delivery:
Packaging Details: Aerosol Spray filling machine Stronger wooden case

Delivery Detail: Aerosol Spray filling machine Within 15 days

Specifications:
Automatic aerosol dispenser air freshener filling machine

1. 1000-24000 cans/day .

2. Factory price,high quality.

3. Easy to operate
