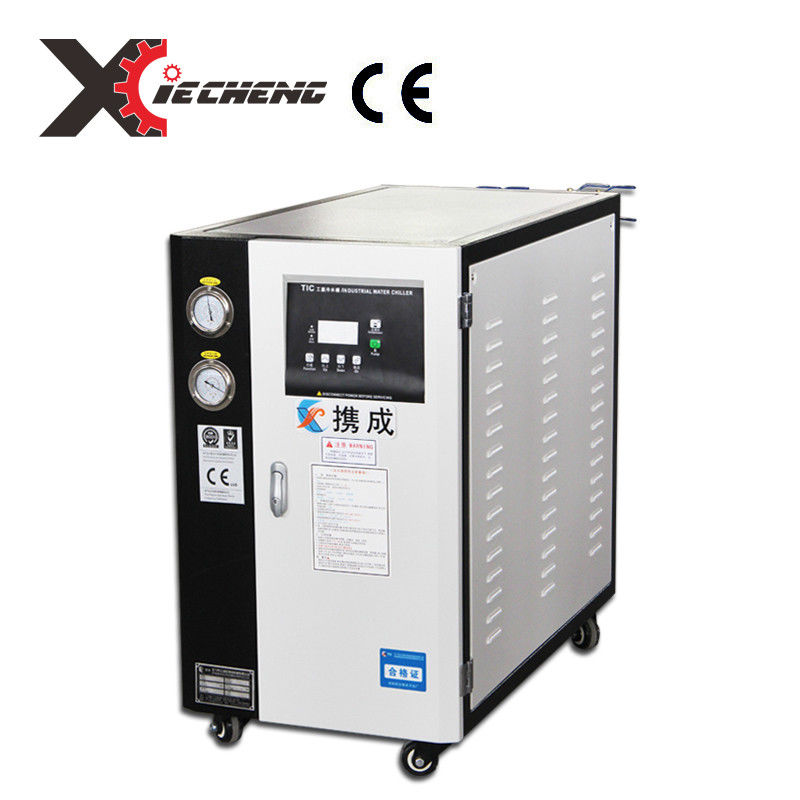

ce water chiller
FEATURE
1. The water chiller is to provide cooling process to plastic moulds to improve molded products quality and cut down injection cycle time. Hence maximizes plastic molding machines productivity.
2. Installed with import compressors, highly efficient shell condenser and evaporator, excellent cooling, quiet and low electricity consumption.
3. Microprocessor control, easy to operate;
4. Unique open reservoir tank made of stainless steel, easy cleaning and maintenance;
5. Pipeline well-arranged to save energy;
6. Installed will precise electronic thermostat accurately maintains temperature within 30C~50C;
7. Installed with current overload protector, high and low pressure switch, electronic timer delay, fault display system;
8. Screen liquid crystal display of chill water out let and inlet with temperatures setting;
9. Single, double or four compressors combination unit available;
10.Industrially designed, elegant and ergonomic.
STRUCTURE
Installed with import compressores ,highly efficent shell type condenserandevaporator,excellent cooling ,quiet and low electricity consumption.
PARAMETER
| Model | UNIT | XC-L5W |
| Refrigerating capacity | kw | 12.9 |
| Kcal/h | 11094 |
| Compressor | Input power(kw) | 4.66 |
| Rated power(Hp) | 5 |
| Evaporator | Type | pipe coil evaporator |
| Pipe diameter(inch) | 1" |
| Refrigerant | Type | R407 / R134A |
| filling Quantity(kg) | 2 |
| Cooling flow(m³/h) | 2.22 |
| Water cooled condenser | Type | shell condenser |
| Pipe diameter(inch) | 1" |
| Water tank capacity(L) | 70 |
| Pump | power(HP) | 0.37 |
| flow(L/min) | 40 |
AFTER-SALES SERVICE
(1) If customer has any question, we will help them to solve immediately.
(2) We offer one year warranty, if the machine have any problem , you will get the feedback from us immediately. We will provide technical support for free.
