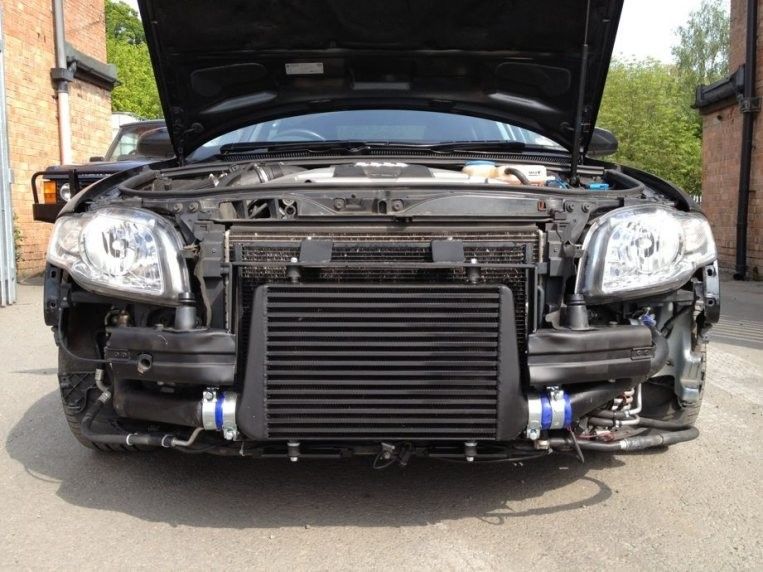

Automotive Finned Tube Heat Exchanger , Vacuum Brazed Intercooler

Product Details:

Place of Origin:	China
Brand Name:	Jinxi
Certification:	ISO9001:2008
Model Number:	Racing car radiator-090204

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Wooden/paper box
Delivery Time:	10-15 working days
Payment Terms:	T/T ,Western union
Supply Ability:	130Tons/month

Contact Now

Detailed Product Description

High Light:

Fin Tube Heat Exchanger

industrial heat exchangers

Aluminum Plate Bar Charge Air Cooler Vacuum Brazed Intercooler

Quick Detail:

Name	Universal air cooler	Brand Name	Jinxi
Color	Silver / black	Feature	High corrosion resistance,compact design
Technique	Brazing / Welding	Certificate	ISO9001:2008

2. Specifications

Universal Charge air cooler
Working pressure:2-40 bar
Working temp:-10-220 Deg C
Structure: Bar and plate aluminum oil cooler
Highly flexible complete,ready-to-use cooling packages
Compact and robust design
Excellent heat transfer:the hot and cold fluids alternate between each of the cross plates,which have a corrugation pattern to create high turbulence in the fluids and thereby maximise the heat transfer.
Long service life and small size

3. Description:

Production:Finned tube radiator / heat exchanger
Material: Aluminium
Technique: Vacuum Brazing and argon Welding
Characteristic:it’s a construction machinery oil-air cooler,compact structure, easy installation.
Process flows: Blanking ->Fin Punching- > Cleaning - > Core Assembly- >Vacuum Brazing ->Part Machining-> Welding->Pressure Test->Drying ->Overall Inspection -> Painting -> Packaging
OEM&ODM service provided

FIN SPEC.
Fins	Pitch(mm/FPI)	G(mm)	H(mm)
Louvered Fin	2.5~5mm/10~20FPI	0.1~0.17	6.5~18
Wavy Fin	2.5~8mm/6~20FPI	0.1~0.35	2.5~12
Flattop Fin	2.1~10mm/5~20FPI	0.1~0.2	2.5~12
Offset Fin1	4.5~8mm/6~16FPI	0.15~0.5	1~5
Offset Fin2	4~8mm/6~13FPI	0.12~0.2	5~18

Place of Origin:	China
Brand Name:	Jinxi
Certification:	ISO9001:2008
Model Number:	Racing car radiator-090204

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Wooden/paper box
Delivery Time:	10-15 working days
Delivery Terms:	FOB shanghai
Payment Terms:	T/T ,Western union
Supply Ability:	130Tons/month

Please do not hesitate to contact us. Our tech team and quality management are very adoptable and

operating well as a manufacuring facility.

We have established many customers who are from Europe, America, mid-east and Africa. we had set up our credit in this heat exchanger manufacturing industrial. we are sincerely hope to develop and improve with more customers from other place.
