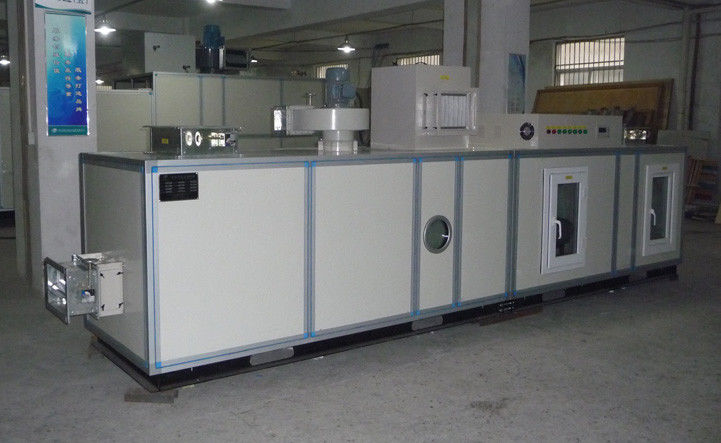

Automatic Industrial Dehumidication Equipment , Air Humidity Silica Gel Wheel

Product Details:

Place of Origin:	Hangzhou, China
Brand Name:	FUDA
Certification:	CE, ISO
Model Number:	ZCB-2600

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	Wooden Case
Delivery Time:	45days
Payment Terms:	T/T, LC
Supply Ability:	10000sets/Year

Contact Now

Detailed Product Description

Product Name:	Industrial Dehumidification System	Product Structure:	Customized
Control System:	Siemens PLC	Working Principle:	Refrigeration Combined Rotor
Process Airflow:	2600m3/h	Supply Air Parameter:	T=20±2℃ RH=23±5%
Highlight:	desiccant dehumidifier unit

High Performance Industrial Dehumidication Systems , Automatic Drying Air 20% RH

Quick Details:

Style: Refrigeration combined with Wheel

Desiccant Rotor: Sweden Proflute

Desiccant Material: Silica Gel Wheel

Rated Air Flow: 2600m³ /h

Supply Air Parameters: T=20℃ RH=20%

Dehumidifier Quality: High

Installed Power: 21.81kw

Voltage: 380V, 3 phase, 50Hz or customized

Certification: ISO9001:2008

Features: Economical, energy-saving

Usage: Air temperature and humidity control

General Description:

ZCB Series Industrial Dehumidification Equipment removes humidity using both refrigeration and a desiccant rotor, so it can both control the humidity and temperature of the air independently in one packaged unit.

Applications:

War Industry, Scientific Research, Electric Power Transportation
Lithium Battery Industry, Biotechnology Pharmaceutical Industry
Chemical, Daily Chemical Industry, Food Beverage Industry
Safety Glazing Material Industry, Tyre and Rubber Industry
Medical Instrument, Vegetables Frozen, Precise Instrument
Wood Goods, Shipbuilding Painting Industry, Kinds of Storage

Specifications:

Main Parameters
Model	ZCB—2600
Total Process Airflow	2600m3/h
Fresh Airflow	258 m3/h
Recirculated Airflow	2342 m3/h
Rotor Regeneration Airflow	860m3/h
Parameters of Output Air	T=20±2℃ RH=23±5%
Regeneration Power	18kw
The Power of Regeneration Fan	0.75kw
The Power of Blower	3kw
The Power of Driving Motor	0.06kw
Installed Power	21.81kw
Cooling Load	39.2kw
Power Supply	3P/380V/50HZ

Operating Principles:

Supply Air Stream

Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the cooling coil where it is cooled. The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised. At last the air is delivered directly to the space or into an existing air handler.

Exhaust Air Stream

Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.

Competitive Advantage:

Sweden Proflute silicon gel wheel
A totally self contained unit
PLC automatic control system, human-machine interface
Aluminum alloy frame, anti-cold bridge
Body modularization design, foam injected double wall casing
Stainless steel drain pan and bottom boards
Process and reactivation air flow sectors are insulated
Electric or steam heating or convert type can be available
All operation parameters can be on-line observed, ensuring operation reliability
High temperature safety thermostat cutout
Electrical interlocking of fan motors, heaters and rotor driving
