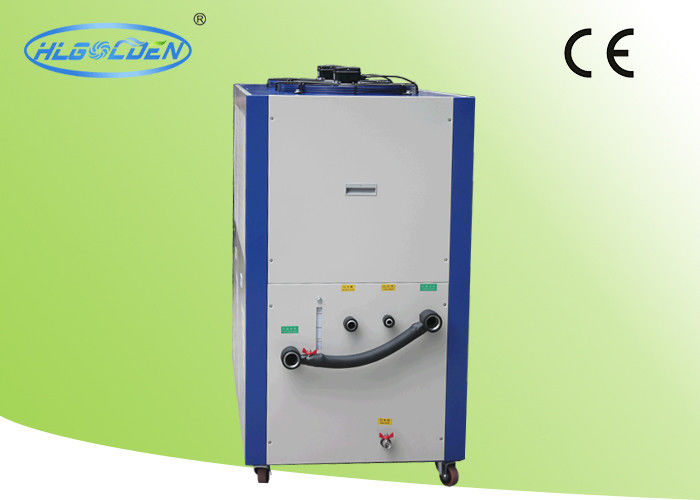

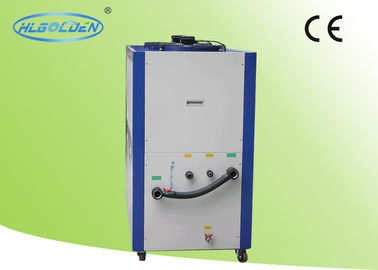

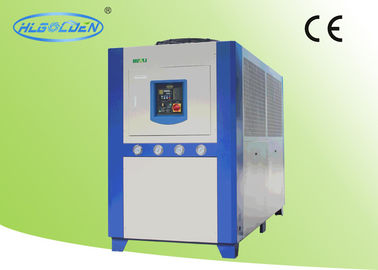

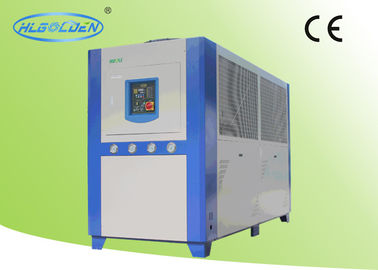

Air Cooled Heat Exchanger Chiller Box 142.2 KW , R22 Refrigerant

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	30 days
Payment Terms:	T/T, Western Union, L/C, MoneyGram
Supply Ability:	20 Units per Month

Contact Now

Detailed Product Description

Function:	Industry Cooling	Cooling Capacity:	142.2KW
Input Power:	45.7KW	Compressor:	3 Pcs
Comp. Current:	72.6 A	Power Supply:	380~400V/3PH/50HZ
Circuit Number:	3	Water Tank:	270 L
Water Pump:	2.2 KW	Type:	Air Cooled
Protection:	Low & High Pressure Protection	Noise:	75 Db(A)
Total Weight:	1280KG	Dimension:	320011802200mm
Highlight:	Water Cooler Chiller

Air Cooled Heat Exchanger Chiller Box Type 142.2 KW , R22 Refrigerant

Product Description:

1. Rated Cooling Capacity: 32.4KW

2. Chilled Water Range: 5～20℃;

3. Condenser: Ripple Aluminum Fins around cooper pipe.

Evaporator: Shell and tube type.

The heat exchanger units are used in efficient heat transfer tubes,the host selection of imported and

efficient hermetic scroll compressor(Copeland), has a compact structure, small size, light weight, small

installation

location, and many other advantages.

4. Microcomputer program controller: Pump Brand..

5. Phase reversion protection, Phase lack protection, Overload current protection, Discharge air

temperature protection, Low & High pressure protection, Low temperature protection, Water flow

protection,and other protections.

Product Detail:

Model HLLA ～		45TI
Rated Cooling Capacity	×1000 kcal/h	122.3
	KW	142.2
Input Power (KW)		45.7
Comp. Input Power×Qty. (KW)		12.5×3
Chillded Water Pump Model		HT65-19
Chilled Water Pump Power (KW)		2.2
Comp. Current (A)		72.6
Power Supply		3φ-380V-50HZ
Safety Protection		Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection,
Number of Refrigeration Circuit		3
Capacity Control (%)		0, 33, 66, 100
Refrigerant		R22
Condenser		Ripple Aluminum Fins around Cooper Pipe
Power lnput of Fan (KW)		6.0
Evaporator		Shell and Tube Type
Water Side Max Pressure (MPa)		1
Dia.of Pipe to Evaporator (inch)		2-1/2"
Chilled Water Flow (L/m)		408.3
Evaporator Water Pressure drop (kPa)		31
Running Noise dB(A)		75
Tank Volume (L)		270
Total weight (Kg)		1280
Dimension L×W×H		3200×1180×2200
