A192 / A210 Seamless Cold Drawn Heat Exchanger U Tube for Boiler

Product Details:

Place of Origin:	China
Brand Name:	Reliance
Certification:	CE,ISO...
Model Number:	U Tube

Payment & Shipping Terms:

Minimum Order Quantity:	N/A
Packaging Details:	Solid fumigated wooden box with tube location racks inside.
Delivery Time:	Ex-work within 1 month on receipt of order.
Payment Terms:	T/T, L/C

Contact Now

Detailed Product Description

Company Type:	Manufacturer, Importer & Exporter	Fin Tube Type:	U Tube Bundles
Fins Type:	Low Fins Is Applicable	Origin:	China
Nearest:	Port Shanghai Port, China	Recent Buyer:	From Pakistan In Dec Of 2014
Heat Treatment:	YES
Highlight:	heat exchanger tubing

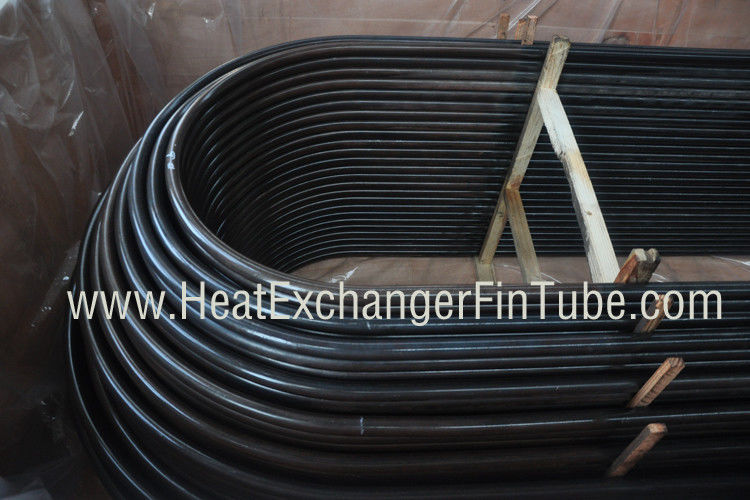

A192 / A210 Seamless U Bend Boiler Tubes for Heat Exchangers

ASTM A192/A192M : Seamless Carbon Steel Boiler Tubes for High-Pressure Service

ASTM A210/A210M : Seamless Medium-Carbon Steel Boiler and Superheater Tubes

More Standard and Grade:

ASTM A210/ASME SA210 A1

ASTM A213/ASME T11 T22

A106B/A53B/A179/A192/A200/A333/A335/500
ASME SA106B/A53B/A192/A200/A333/A335/500
BS3059  BS6323-4  BS3602-1
EN10297-1    EN10305-1   EN10216-1   EN10216-2    EN10210-1
DIN1629   DIN1630  DIN 17175 DIN2391   DIN17204      DIN2448
JIS G3452(SGP)   JIS G3461JIS G3462  JIS G3454JIS G3455  JIS G3444

Tube Type:

Seamless (Cold Drawn)

Both Ends:

Plain ends or bevel ends

Straight Tubes Maximum Length:

(Before Bending): 35000 mm.

Unit Leg Length

Min 1 Meter, Max. 16500 mm (For Max R=1500mm)

Heat Treatment

Stress Relieved After U-Bending (Bending Area Plus 300MM For Each Leg).

Hydrostatic Test After U Bending

Maximum Test Pressure 600 Bar, Holding time: 10 Sec.

Medium: Dematerialized Water.

Compressed Air Cleaning After Hydro-Test.

Packaging

In Strong Transport-Worthy Pre-fumigated wooden boxes of corresponding dimensions for

each tube Length, Radius, Diameter, According To PO requirements as well as wrapped In polyethylene

films With soft plastic caps on both end of Tube.

General Quality Tests

Corrosion Test	Conducted only when specially requested by the client
Chemical Analysis	Test done as per required quality standards
Destructive / Mechanical Testing	Tensile \| Hardness \| Flattening \| Flare \| Flange
Reverse-bend and Re. flat tests	Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing	Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing	100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test	To check any evidence of air leakage
Visual Inspection	After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections

Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:
