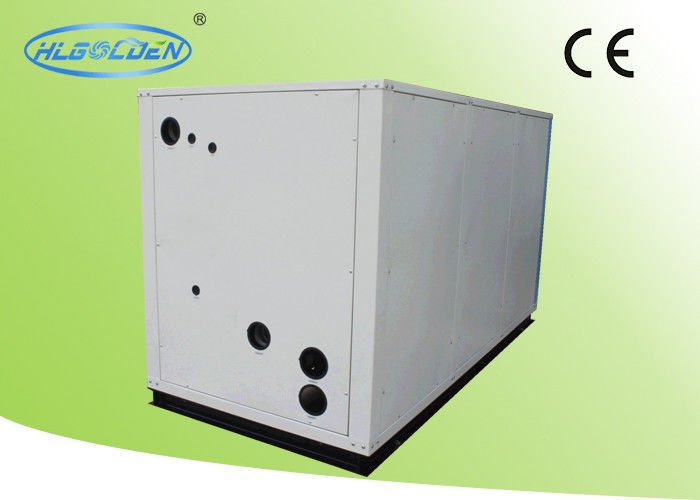

41.2KW 10HP Industrial Water Chiller for Injection Molding Machine

41.2KW 10HP Industrial Water Chiller for Injection Molding Machine

  • 41.2KW 10HP Industrial Water Chiller for Injection Molding Machine
  • 41.2KW 10HP Industrial Water Chiller for Injection Molding Machine
  • 41.2KW 10HP Industrial Water Chiller for Injection Molding Machine
41.2KW 10HP Industrial Water Chiller for Injection Molding Machine
Product Details:
Place of Origin: DongGuan, GuangDong
Brand Name: HIGOLDEN
Certification: CE
Model Number: HLLW~12.5SPI
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 25~35 days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 500 Units per Month
Contact Now
Detailed Product Description
Function: Industry Cooling Cooling Capacity: 41.2 KW
Input Power: 9.3KW Compressor: 1 Pcs
Power Supply: 380~400V/3PH/50HZ Circuit Number: 1
Water Tank: 180 L Water Pump: 1.5 KW
Type: Water Cooled Chiller Protection: Low Temp. Protection
Noise: 72 Db(A) Total Weight: 500 KGS
High Light:

Water Cooler Chiller

,

Water To Water Chiller


41.2KW 10HP Industrial Water Chiller Use For Injection Molding Machine

Product Description:



1. Applied imported high grade compressor and water pump, which are safe and tranquil,

electricity-saving and endurance;

2. The water chiller is deployed with Italy temperature controller, it can control the temperature

between +5°C and 20°C exactly.

3. The heat exchange efficiency of water chiller is very high;

4. The water chiller is designed to be with Phase reversion protection, Phase lack protection, Overload

current protection, discharge air temp. protection, Low & High pressure protection, Low temp.

protection, Water flow protection, when malfunction happened, it could alarm and show the cause

of the problem in time.

5. With stainless steel water tank, it is very convenience purify;

6. This series Industrial water chiller can customize base on the requirement.





Product Function:



Compressor:
Featured brands imported semi-closed and semi-hermetic screw compressor reciprocating. Performance

and low noise. Based on customer needs and cooling tonnage size, or the use of stand-alone package.

Compressor load can automatically alternate operation, to balance the number of compressor run-time,

greatly extended the deadline for the use of chillers.



Evaporator:

Copper evaporator to enhance the use of internal and external screw-type tube. Threaded brass surface, brass

 outer surface smooth, cooling effect, and to Cylinder body evaporator insulation board 25mm thick PE

insulation, non-condensing, less loss of cooling capacity.



Protection device:
Protection systems are installed with: temperature control switch, fusible bolt, high-low pressure switch, with

phase reversion protection, phase lack protection, overload current protection, discharge air temp.

protection, Low & High pressure protection, low temp. protection, water flow protection.



Computer-controlled system:
Developed intelligent PLC, PC-class computer-controlled system, can do remote monitoring and control, simple operation, the host and power

connections.

Failure rate is low and a high factor of safety, simple installation. System control are available for immediate adjustment, intuitive and reliable.





Product Detail Parameter:



Model  HLLW ~

03SPI

05SPI

08SPI

10SPI

12.5SPI

Rated Cooling Capacity

×1000 kcal/h

8.8

14.1

22.9

30.4

35.4

KW

10.2

16.4

26.6

35.3

41.2

Input Power (KW)

2.85

4.3

6.3

7.9

9.3

Comp. Input Power×Qty.  (KW)

2.1

3.55

5.2

6.8

7.8

Chilled Water Pump Power  (KW)

0.75

0.75

1.1

1.1

1.5

Comp. Current (A)

5.3

8.4

12.6

16.2

18.1

Power Supply

3φ-380V-50HZ

Safety Protection

Phase reversion protection, Phase lack protection,

Overload current protection, Discharge air temp. protection,

Low & High pressure protection, Low temp. protection,

Water flow protection,

Number of Refrigeration Circuit

1

Capacity Control (%)

0, 100

Refrigerant

R22

Condenser

Shell and Tube Type

Water Side Max Pressure (MPa)

1

Dia. of Pipe to Condenser (inch)

1"

1-1/2"

1-1/2"

1-1/2"

2"

Cooling Water Flow (L/m)

35.3

57.2

91.2

120.6

140.5

Condenser Water Pressure drop (kPa)

21

22

23

29

31

Evaporator

Pipe Coil Type

Shell and Tube Type

Water Side Max Pressure (MPa)

-

1

Dia.of Pipe to Evaporator (inch)

1"

1"

1-1/2"

1-1/2"

2"

Chilled Water Flow (L/m)

29.2

47.0

76.4

101.2

118.1

Evaporator Water Pressure drop (kPa)

-

17

23

28

Running Noise dB(A)

54

56

66

72

72

Tank Volume (L)

80

80

180

180

180

Total weight (Kg)

120

160

430

460

500

Dimension L×W×H

850×550×1050

1400×850×1180

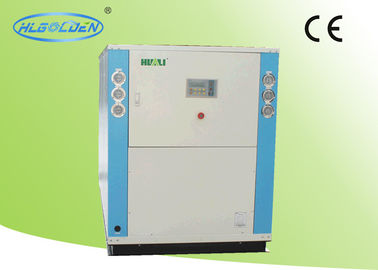

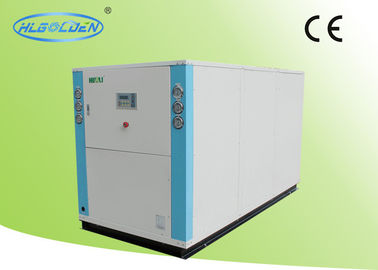

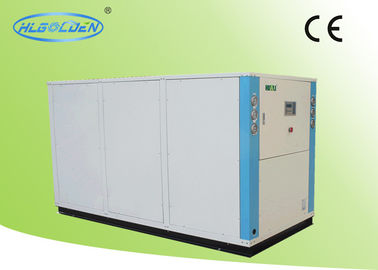

Product Show:



41.2KW 10HP Industrial Water Chiller for Injection Molding Machine 041.2KW 10HP Industrial Water Chiller for Injection Molding Machine 141.2KW 10HP Industrial Water Chiller for Injection Molding Machine 2
