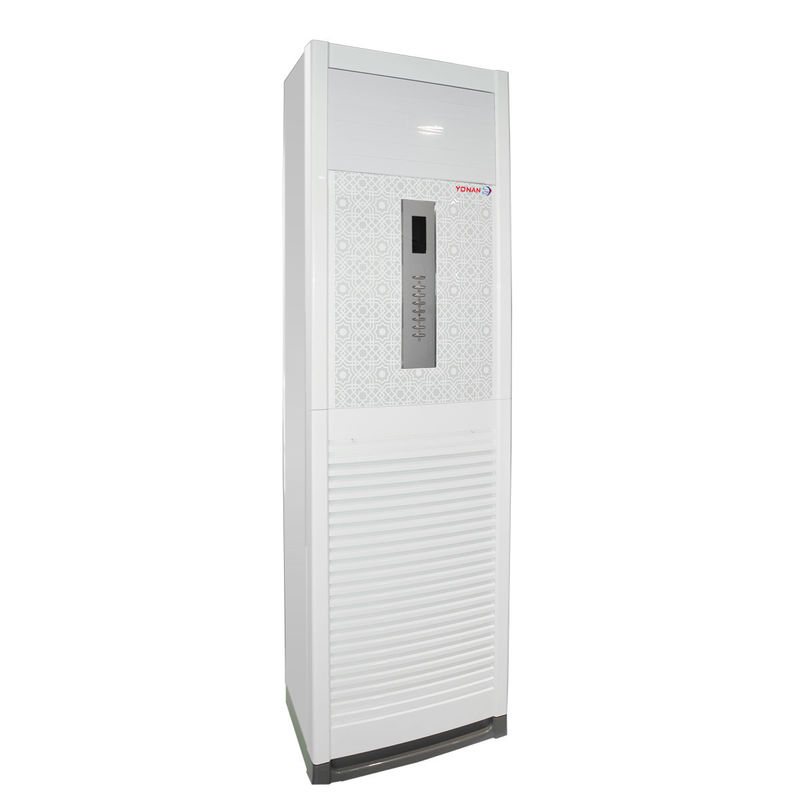

220V R22 Spit Floor Standing Air Conditioner / Heating Cooling Air Conditioner

220V R22 Spit Floor Standing Air Conditioner / Heating Cooling Air Conditioner

  • 220V R22 Spit Floor Standing Air Conditioner / Heating Cooling Air Conditioner
  • 220V R22 Spit Floor Standing Air Conditioner / Heating Cooling Air Conditioner
220V R22 Spit Floor Standing Air Conditioner / Heating Cooling Air Conditioner
Product Details:
Place of Origin: China
Brand Name: YONAN
Certification: ISO14001,ISO9000
Model Number: KF-36LW,KFR-36LW
Capacity: 36000BTU
Compressor Brand: TOSHIBA|GMCC
Control: Remote Control
Function: Cooling only|Cooling and Heating|Cooling
Power: R22|220V|50Hz
Power Source: Electric
Product Name: Floor Standing Air Conditioner
Type: Floor
Contact Now
Detailed Product Description
High Light:

stand alone air conditioner

,

energy efficient air conditioners



220V R22 Spit Floor Standing Air Conditioner / Heating Cooling Air Conditioner





Quick Detail:



1,   Type/Name: Floor standing Type Air Conditioner

2,   Capacity Available: 36000BTU

3,   Power & Gas: 220V/50Hz, R22

4,  Power Source: Electric

5,   Work Condition: T1(-7~43 degree)

6,   Compressor Brand: TOSHIBA(GMCC)

7,    Function: Cooling only, Cooling and Heating function

8,    Control: Remote

9,   Warranty: 2 years for complete unit, 5 years for compressor

10,  1% free spare parts available

11,   No limited after-sales service and technical support

12,  Certificate: ISO14001,ISO9000

13, Application Area : 51-85 m2





Specifications:



Model





KF-36LW

KFR-36LW

Power supply



Ph-V-Hz

380-415V 3N~50Hz

1Ph, 220-240V~,

50Hz

Cooling

Capacity

Btu/h

36000

36000



Input

W

4390

3700



Rated current

A

8.2

16.8



EER

W/W

2.40

2.41

Heating

Capacity

Btu/h

----

36000



Input

W

----

2900



Rated current

A

----

15



COP

W/W

----

3.64

Compressor

Type



ROTARY

ROTARY

Indoor unit

Dimension(W*D*H)

mm

540x379x1775

540x379x1775



Packing   (W*D*H)

mm

1915x475x660

1915x475x660



Net/Gross weight

Kg

49 / 59

50/60

Outdoor unit

Dimension(W*D*H)

mm

900x315x860

900x315x860



Packing  (W*D*H)

mm

1043x395x915

1043x395x915



Net/Gross weight

Kg

62 / 66

70/73

Refrigerant type



g

R22/1900g

R22/2600g

Refrigerant piping

Liquid side/ Gas side

mm(inch)

Φ12.7/Φ19

(1/2"/3/4")

Φ12.7/Φ19

(1/2"/3/4")



Max. refrigerant

pipe length

m

25

25



Max. difference in level

m

10

10

Operation temperature

Indoor(cooling/ heating)

17~32/----

17~32/0~30



Outdoor

(cooling/heating)

18~43/----

18~52/-7~24

Application area



m2

51-85

51-85

Qty’per 20’ /40’ /40'HQ





27/57/61

27/57/61





Features and Advantage:



 1,  Auto restarts function and LED display for the air conditioner, for easy operation

2,   Sleep mode and timer function, and Independent dehumidifying function , that is more humanized design for the people

3.   Good after-service: 5 years warranty for compressor, and 2 years for complete unit

4.   the compressor is used by the famous brand name TOSHIBA(GMCC), rotary type compressor
