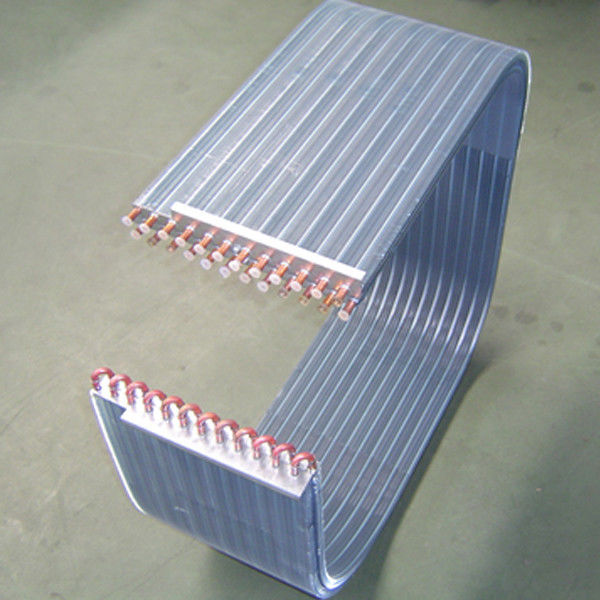

Name: 1.9MPa Cold / Hot Water Air Conditioning System Aluminium Fin Copper Tube Heat Exchanger
Brand: Shenzhen SAE Automotive Equipment Co.,Ltd
Availability: InStock

Home Products Finned Tube Heat Exchanger

1.9MPa Cold / Hot Water Air Conditioning System Aluminium Fin Copper Tube Heat Exchanger

Product Details:

Place of Origin:	Shanghai, china(Mainland)
Brand Name:	shenglin
Certification:	CE

Contact Now

Detailed Product Description

Highlight:	Laser welding machine

1.9MPa Cold / Hot Water Air Conditioning System Aluminium Fin Copper Tube Heat Exchanger

Air Conditioning System Aluminium Fin Copper Tube Heat Exchanger High Efficient

fin tube heat exchanger

Specifications:

Item	Heat exchanger Type	Operation medium	Operation pressure (MPa)	Application
1	Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin	Cold/hot water	≤1.6	Used for combined air handling unit, fan coil etc air conditioning devices
2	Φ18/Φ20 Steel pipe winding with steel sheet	Steam	≤0.2	Used for combined air handling unit, fan coil etc air conditioning devices
3	Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin	Brine	≤1.6	Used for heat transfer in cold storage and all kinds of low temperature systems
4	Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin	Ethylene glycol	≤1.6	Used of energy recovery and low temperature system devices
5	Φ16 Copper tube with aluminium fin	Ice mud	≤1.6	Used for dry operation condition, fresh air dehumidification etc systems
6	Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin	R22	≤1.9	Used for industry and commerce air conditioning system
7	Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin	R407C	≤1.9	Used for industry and commerce air conditioning system
8	Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin	R134a	≤3.1	Used for vehicle and vessel etc transportation devices
